Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm

50M
MOQ
USD 0.5-6.0/M
Price
Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Class 1 Nicrosil Nisil N Type Mi Thermocouple Cable
Outside Dia: 0.5-12.7mm
Sheath: SS321,SS316,SS310,Inconel600
Moq: 50M
Application: Connecting With Thermocouple And Instrument Machine
Certification: ISO
Type: Single Double
Brand: LEADKIN
Highlight:

nicrosil nisil Mineral Insulated Thermocouple Cable

,

Mineral Insulated Thermocouple N type Cable

,

shielded thermocouple wire 0.7mm

Basic Infomation
Place of Origin: NINGBO CHINA
Brand Name: LEADKIN
Certification: ISO,
Model Number: LK-K
Payment & Shipping Terms
Packaging Details: 68*68*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000,000M/year
Product Description

Quick Details:

 Name:class 1 nicrosil nisil N type mi thermocouple cable

Type: N

Conductor material: NiCrSi-NiSi

Insulator: 99.6% high purity MgO

Core number: 2, 4

Sheath material: SS321, SS316, SS310, Inconel600

Dia(mm): 0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C





Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100





Accuracy for Sheath Wire Type K



Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃



Product Pictures

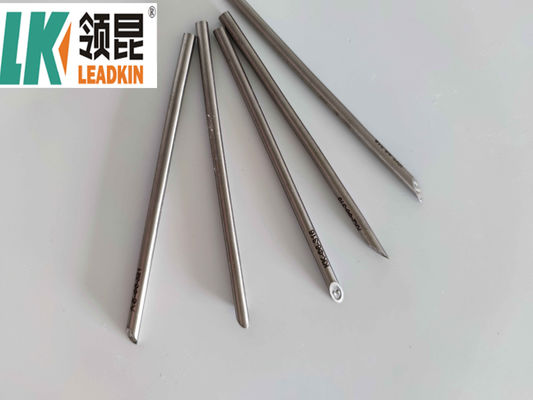

Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm 0

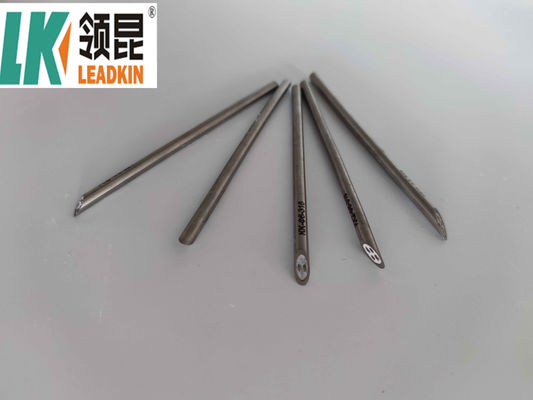

Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm 1



Company Information:

A. Usage time Test

Armored thermocouple stability test for 6000 hours (250days)



Test 6000 hours under the ceiling temperature 820 ℃, and one time per 500 hours.

Conclusion of cyclic test the thermocouple stability: the life time about 41 years under the 600 ℃ working condition .



B. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.



1.Assembly

Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm 2

2.Drawing

Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm 3

3.Annealing

Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm 4

4. Polishing



5.Test

Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm 5



6. Mi cable in stock

Shielded Nicrosil Nisil Mineral Insulated Thermocouple Cable Wire N Type 0.7mm 6





FAQ:



1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better .
