Quick Details:
Name:LEADKIN Mineral Insulated RTD Cable MI Cable Manufacturers
Conductor material: NiCr-NiSi, NiCrSi-NiSi)
Insulator: 99.6% high purity MgO
Dia(mm): 0.3mm to 12.7mm
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | ||
| Accuracy | Temp.Range | Accuracy | Temp.Range | |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |

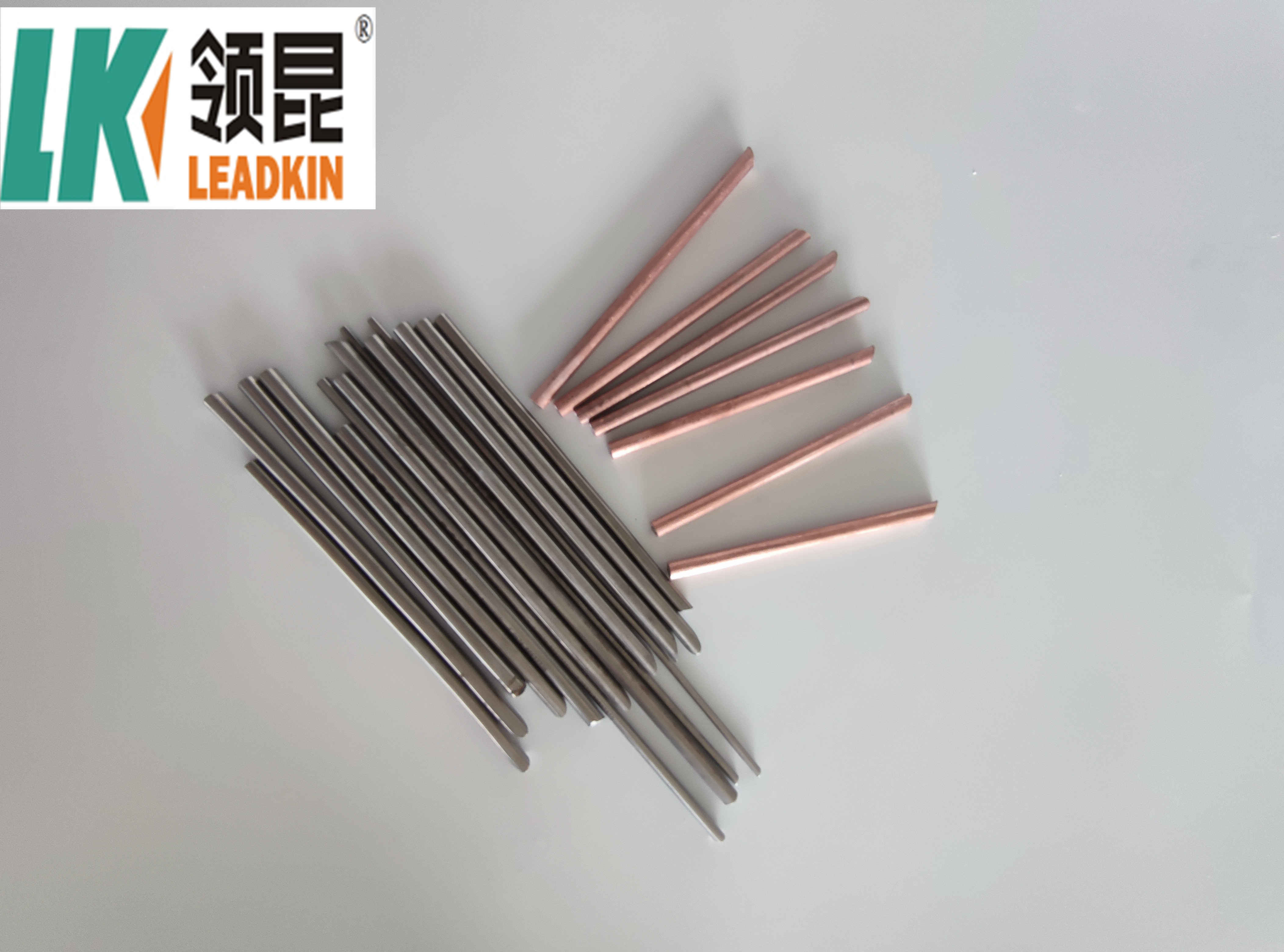

Product Pictures
Company Information:
A. Main Products
B. Invention Patent :Manufacturing method of sheath thermocouple cable
Usage:Raw material of sheath thermocouple
C. Warehouse
We have great amount mi cable in stock. We expecting your visiting.
