5MM Pt100 Mineral Insulated Metal Sheathed Cable Shielded Thermocouple Wire Al2O3

100M
MOQ
USD 0.99-30/M
Price
5MM Pt100 Mineral Insulated Metal Sheathed Cable Shielded Thermocouple Wire Al2O3
Features Gallery Product Description Request A Quote
Features
Specifications
Sheath Material: SS304,SS321,SS316,310S,Inconel600
Type: Single,double
Calibration: K,N,E,J,T,R,B,S,Pt100
Dia: 0.5mm-12.7mm
Name: Mineral Insulated Thermocouple Cable Simplex Duplex Mi Cable
Purity Of MgO: ≥99.6%
Sample: Free
MOQ: 100M
Package: Carton
Usage: Industrial Temperature Test
Brand Name: Leadkin
Supply Ability: 1,000,000 M/year
High Light:

5MM Mineral Insulated Metal Sheathed Cable

,

Pt100 Mineral Insulated Metal Sheathed Cable

,

shielded thermocouple wire Al2O3

Basic Infomation
Place of Origin: CHINA
Brand Name: LEADKIN
Certification: ISO,
Model Number: LK-KK-φ8.0-SS316-I
Payment & Shipping Terms
Packaging Details: 68*68*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1,000,000M/year
Product Description

Quick detail

Name:Mineral Insulated Thermocouple Cable Simplex Duplex Mi Cable

Type: K,N,E,J,T,R,B,S,Pt100

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell

Dia(mm):  0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Zhejiang, China (Mainland)

Eco-friendly: Yes

MOQ: 100m

Certificate: ISO

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C



Type for Sheath Wire Type K



Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100



Accuracy for Sheath Wire Type K



Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃



Product Pictures

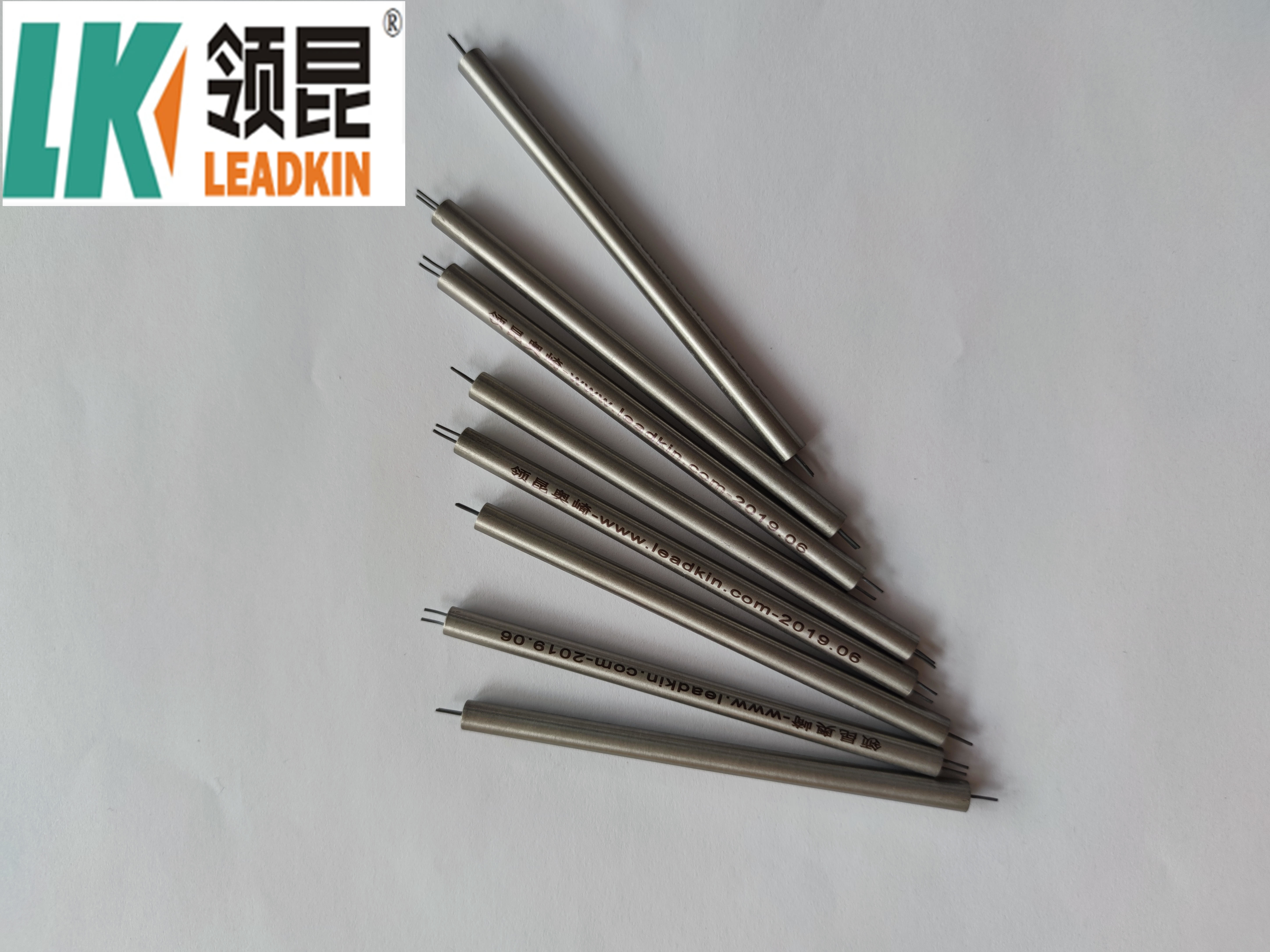

5MM Pt100 Mineral Insulated Metal Sheathed Cable Shielded Thermocouple Wire Al2O3 0

5MM Pt100 Mineral Insulated Metal Sheathed Cable Shielded Thermocouple Wire Al2O3 1



Order Notice:



1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
