200C SS304 4 Wire Rtd Thermocouple Extension Cable Mineral Insulated

100M
MOQ
USD260-400/M
Price
200C SS304 4 Wire Rtd Thermocouple Extension Cable Mineral Insulated
Features Gallery Product Description Request A Quote
Features
Specifications
Sheath Material: 316
Type: Single,double
Dia: 0.5mm-12.7mm
Name: Ss310 SS316 Mineral Insulated Thermocouple Cable 2 Cores Type T
Purity Of MgO: ≥99.6%
Sample: Free
MOQ: 100M
Package: Carton
Usage: Industrial Temperature Test
Temperature Range: 1100℃~1600℃
High Light:

200C thermocouple extension cable

,

SS304 thermocouple extension cable

,

4 wire rtd cable Mineral insulated

Basic Infomation
Place of Origin: CHINA
Brand Name: LEADKIN
Certification: ISO,CE
Model Number: LK-T
Payment & Shipping Terms
Packaging Details: 68*68*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1,000,000M/year
Product Description

Type T Thermocouple (Copper/Constantan): The Type T is a very stable thermocouple and is often used in extremely low temperature applications such as cryogenics or ultra low freezers. It is found in other laboratory environments as well. The type T has excellent repeatability between –380F to 392F (–200C to 200C)..



Quick detail

Name:Ss310 SS316 Mineral Insulated Thermocouple Cable 2 Cores Type T

Type: K,N,E,J,T,R,B,S,Pt100

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: Inconel600

Dia(mm):  3.0mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Zhejiang, China (Mainland)

Eco-friendly: Yes

MOQ: 100m

Certificate: ISO

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C



Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800





Accuracy for Sheath Wire Type K

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃



Product Pictures

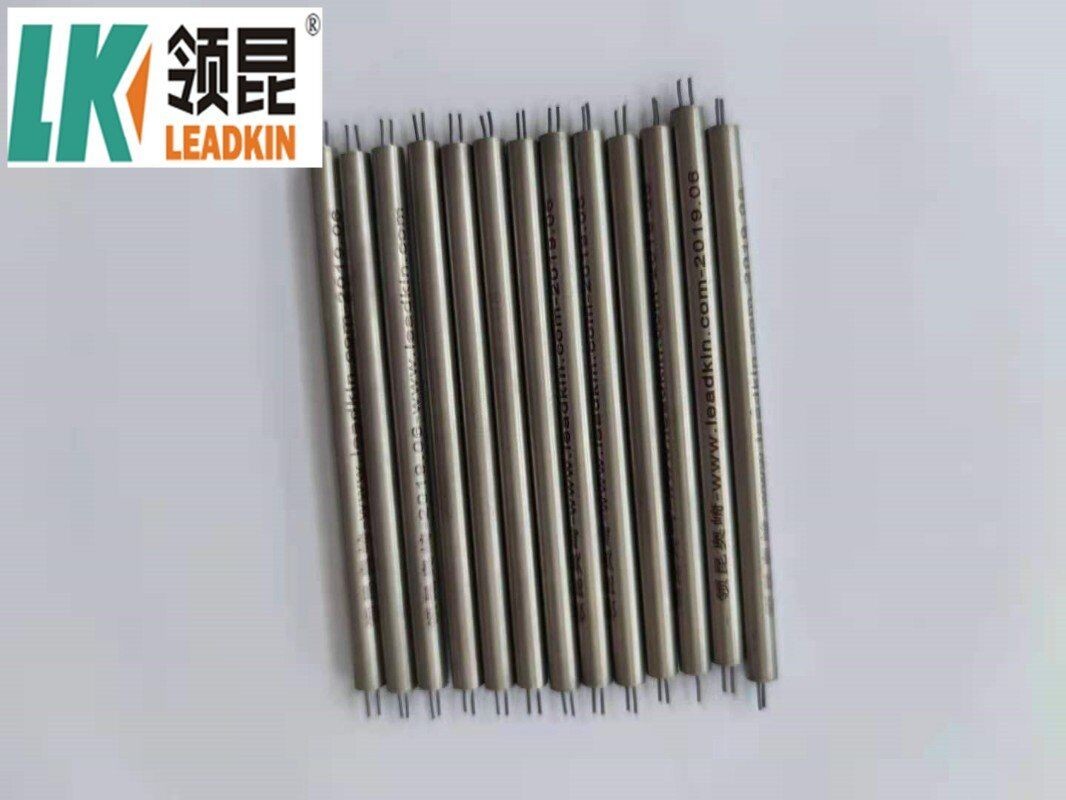

200C SS304 4 Wire Rtd Thermocouple Extension Cable Mineral Insulated 0



200C SS304 4 Wire Rtd Thermocouple Extension Cable Mineral Insulated 1
