Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316

Basic Properties
Place of Origin: CHINA
Brand Name: LEADKIN
Certification: ISO,
Model Number: LK-Ni
Trading Properties
Minimum Order Quantity: 100M
Price: USD 0.99-30/M
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1,000,000M/year
Tags

4 core steel wire armoured cable

SS321 steel wire armoured cable

Armoured RTD Sensor Cable
Specifications
Sheath: SS304,SS321,SS316 Calibration: Pt100
Name: 3 Cores RTD Cable With 99.6% High Purity Mgo Insulation Material Temperature range:: -70~500℃
MOQ: 100M Accuracy: 0.1%
Core: 3 Brand: LEADKIN
High Light:

Sheathed Electrical 3 Wire

,

Thermocouple RTD Cable

,

Mgo Insulation PT100 Cable
Product Description

The RTD cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.





Quick detail

Name:3 Cores RTD Cable With 99.6% High Purity Mgo Insulation Material

Type: Pt100

Conductor material: Ni

Insulator: 99.6% high purity MgO

Core number: 3

Sheath material: SS321(SS304), SS316

Dia(mm):  3.0mm to 12.7mm



Nominal Dimensions:

Out Dia. Length Sheath Thickness Wire Dia.
3 90 0.38-0.48 0.38-0.42
3.2 90 0.48-0.58 0.39-0.43
4 80 0.52-0.62 0.50-0.60
4.8 60 0.73-0.83 0.58-0.68
5 50 0.78-0.88 0.60-0.70
6 40 0.98-1.08 0.70-0.80
6.4 30 1.05-1.15 0.73-0.83
8 20 1.30-1.44 0.80-1.10

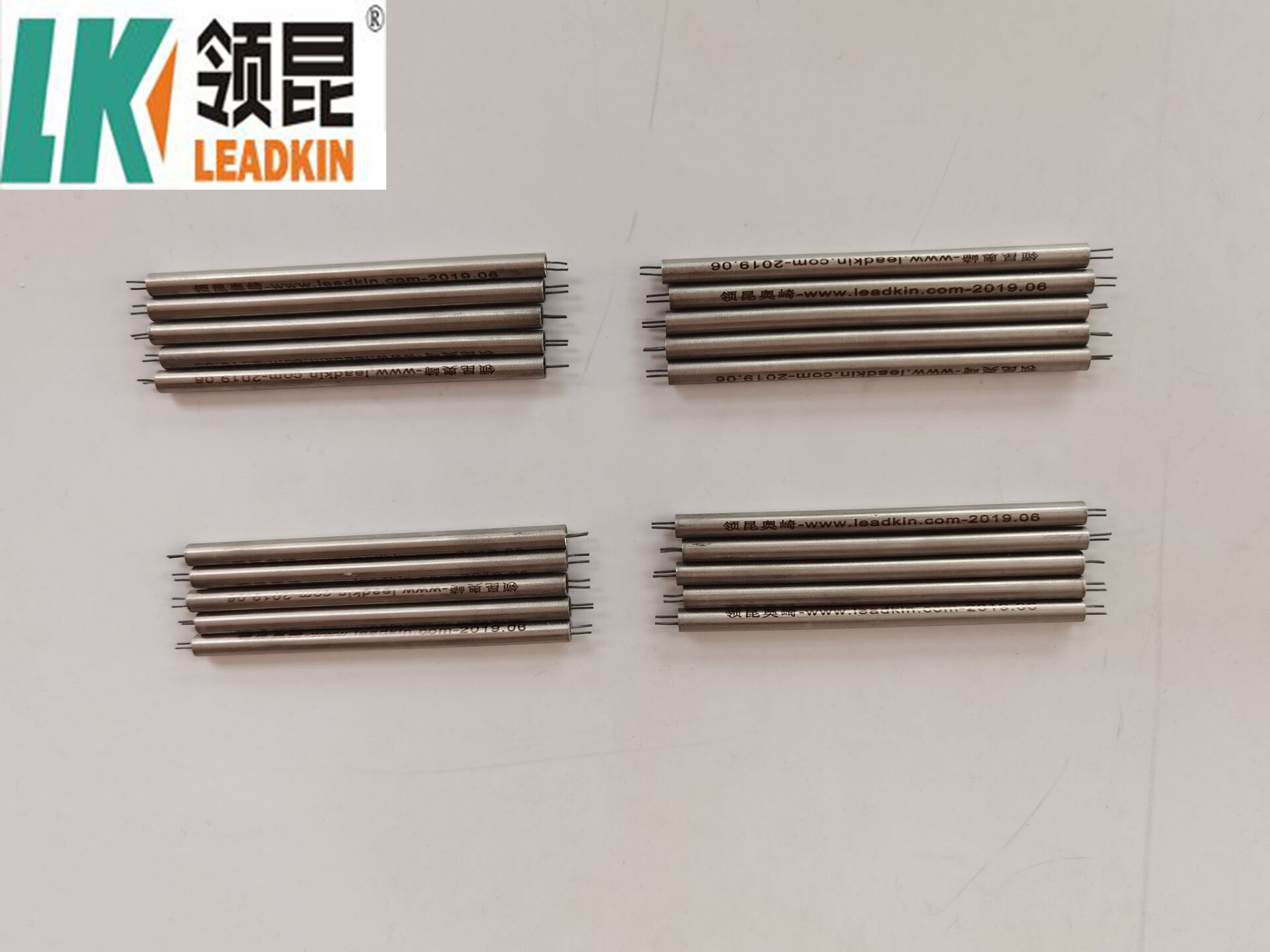

Product Pictures

Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316 0



Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316 1



Company Information:

A. Main Products



Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316 2

B. Package



We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.



Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316 3



Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316 4





Order Notice:



1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
