2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321

50M
MOQ
USD 0.5-6.0/M
Price
2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321
Features Gallery Product Description Request A Quote
Features
Specifications
Name: High Quality K Type Stainless Steel Braided Thermocouple Cable
Outside Dia: 0.5-12.7mm
Insulation: MgO
Function: Thermocouple Material
Factory: Yes,production Line
Package: Carton. Pallet
Sheath: Inconel600
Temperature Range: 0-1100℃
High Light:

MgO Mineral Insulated Heating Cable

,

SS321 Thermocouple Heating Cable

,

2 Core Thermocouple Heating Cable

Basic Infomation
Place of Origin: NINGBO CHINA
Brand Name: LEADKIN
Certification: ISO,
Model Number: LK-K
Payment & Shipping Terms
Packaging Details: 68*68*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000,000M/year
Product Description

Mi SS321 2 Core Thermocouple Mineral Insulated Heating Cable



A mineral insulated thermocouple cable consists of two conductors (sometimes even four or six) of dissimilar metals. These conductors are joined on the side on which temperature should be measured (hot junction). When properly joined, a voltage is produced that can be read to determine temperature. The dissimilar metals are insulated with high quality magnesium oxide and covered with a corrosion resistant sheath material, such as Inconel or Stainless steel. Mineral insulated thermocouples can provide stable temperature measurement readings and are often used for high temperatures (up to 1250⁰C) in hazardous environments.



Type K, Nicr-Ni thermocouple is the most common thermocouple junction. In general, it has a wide temperature range, it is reliable and economically priced. The temperature range of type K, NiCr-Ni thermocouples is -270°C ..+1260°C.







Quick Details:

 Name:High Quality K Type Stainless Steel Braided Thermocouple Cable

Type: K

Conductor material: NiCr-NiSi

Insulator: 99.6% high purity MgO

Core number: 2, 4

Sheath material: Inconel600, Nicrobell

Dia(mm): 0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Zhejiang, China (Mainland)

Certificate: ISO

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C





Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100





Accuracy for Sheath Wire Type K



Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃



Product Pictures

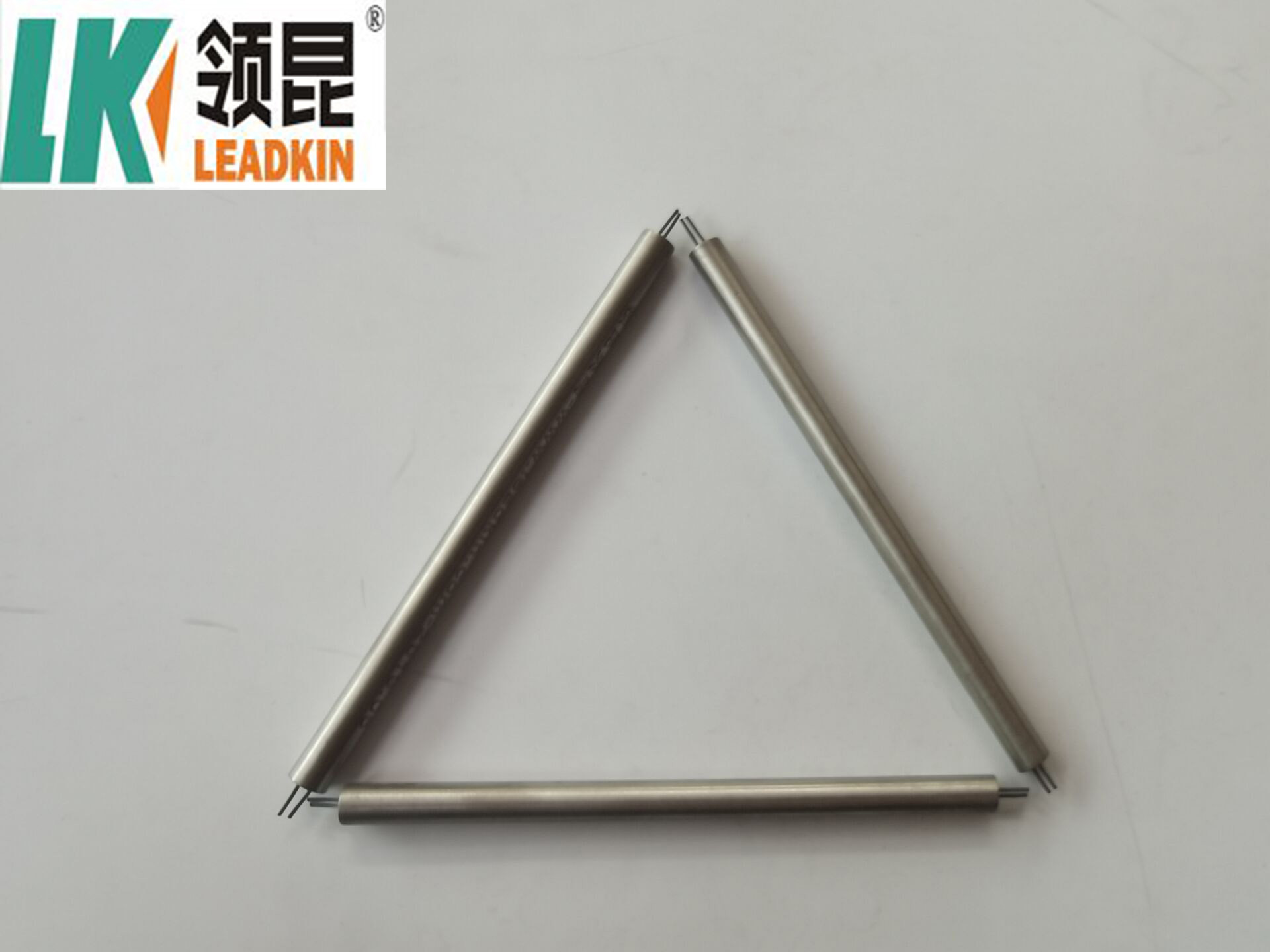

2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321 0

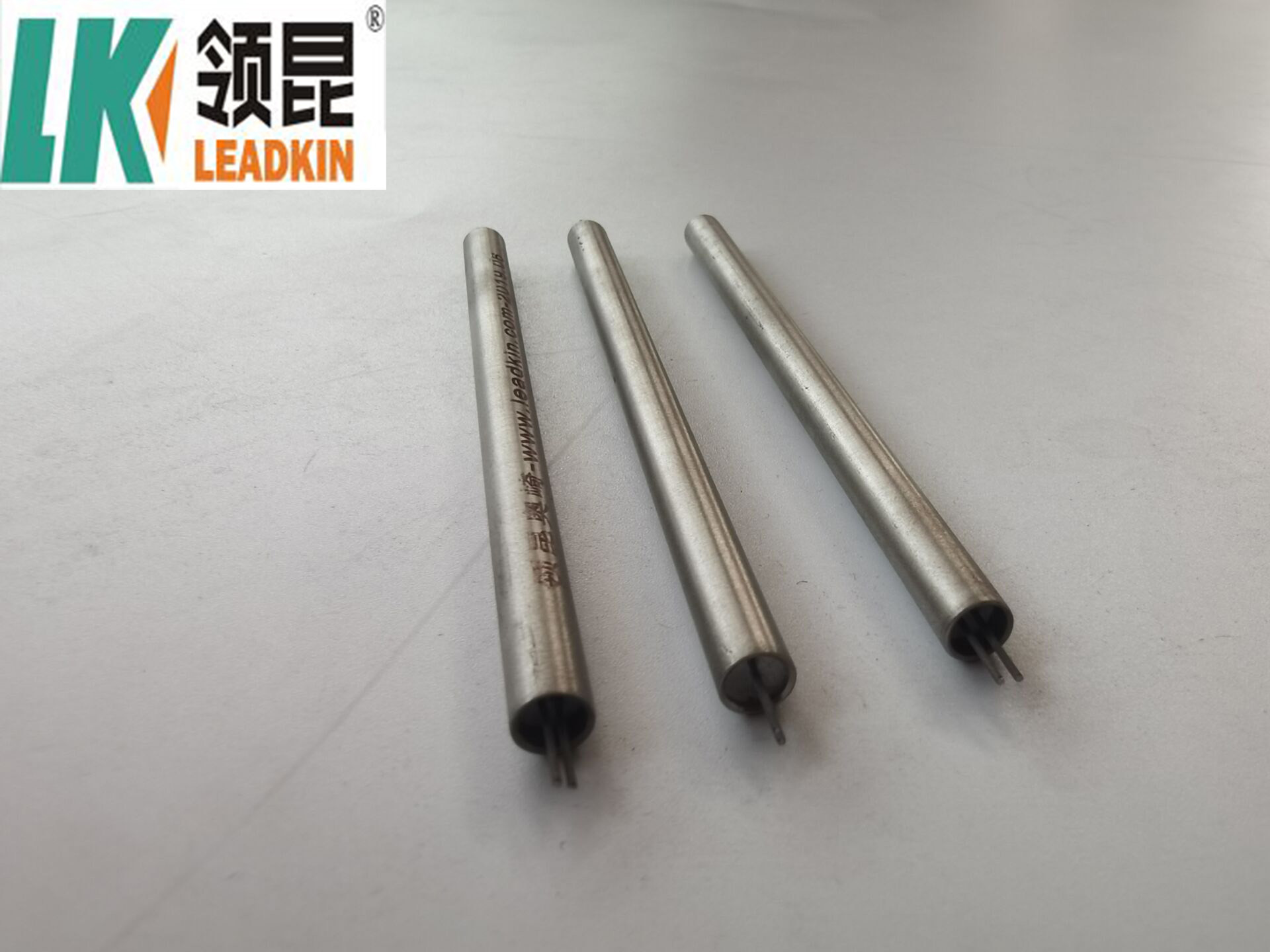

2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321 1



Company Information:

A. Main Products

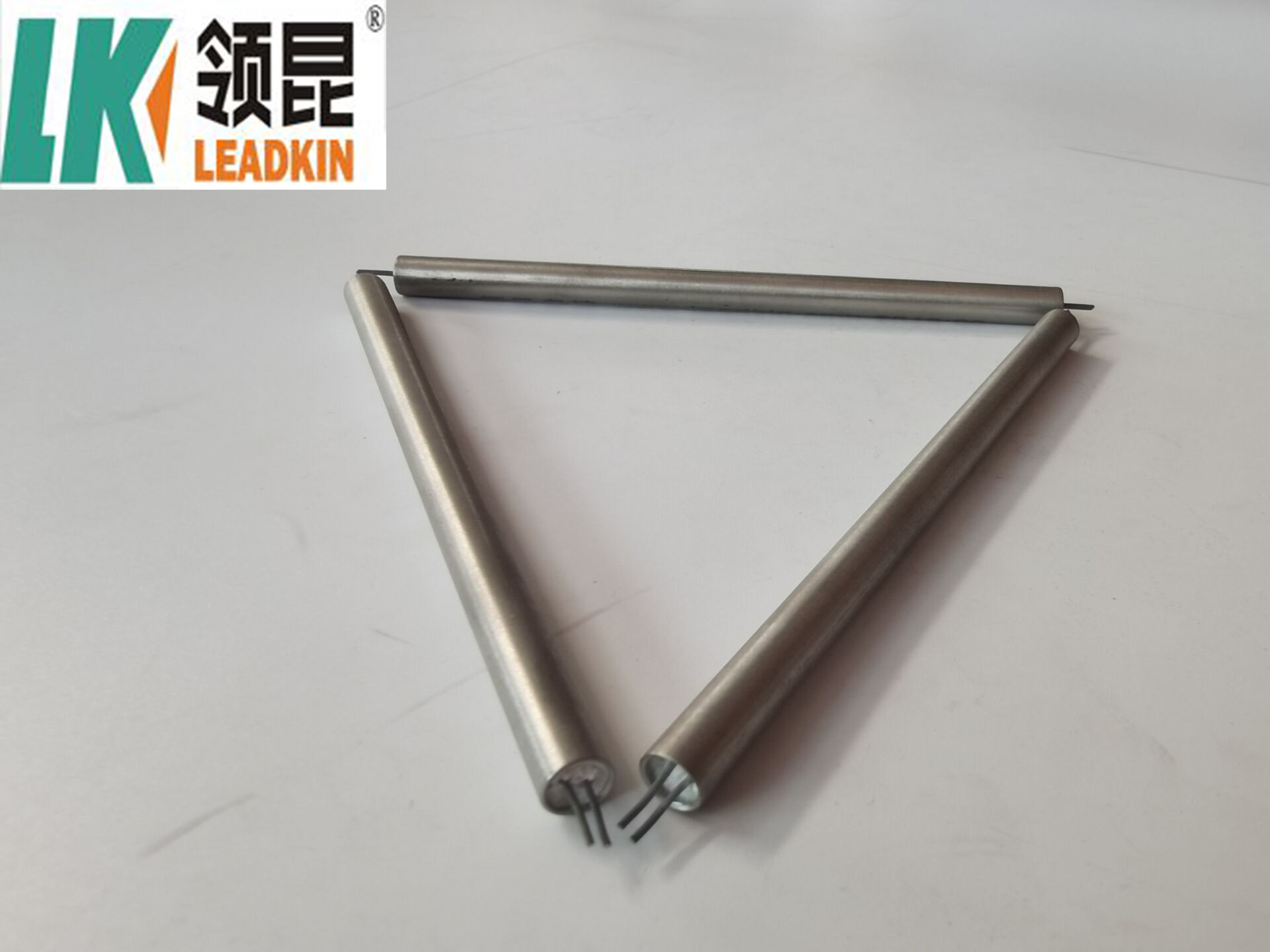

2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321 2

B. Package



We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.



C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.



1.Assembly

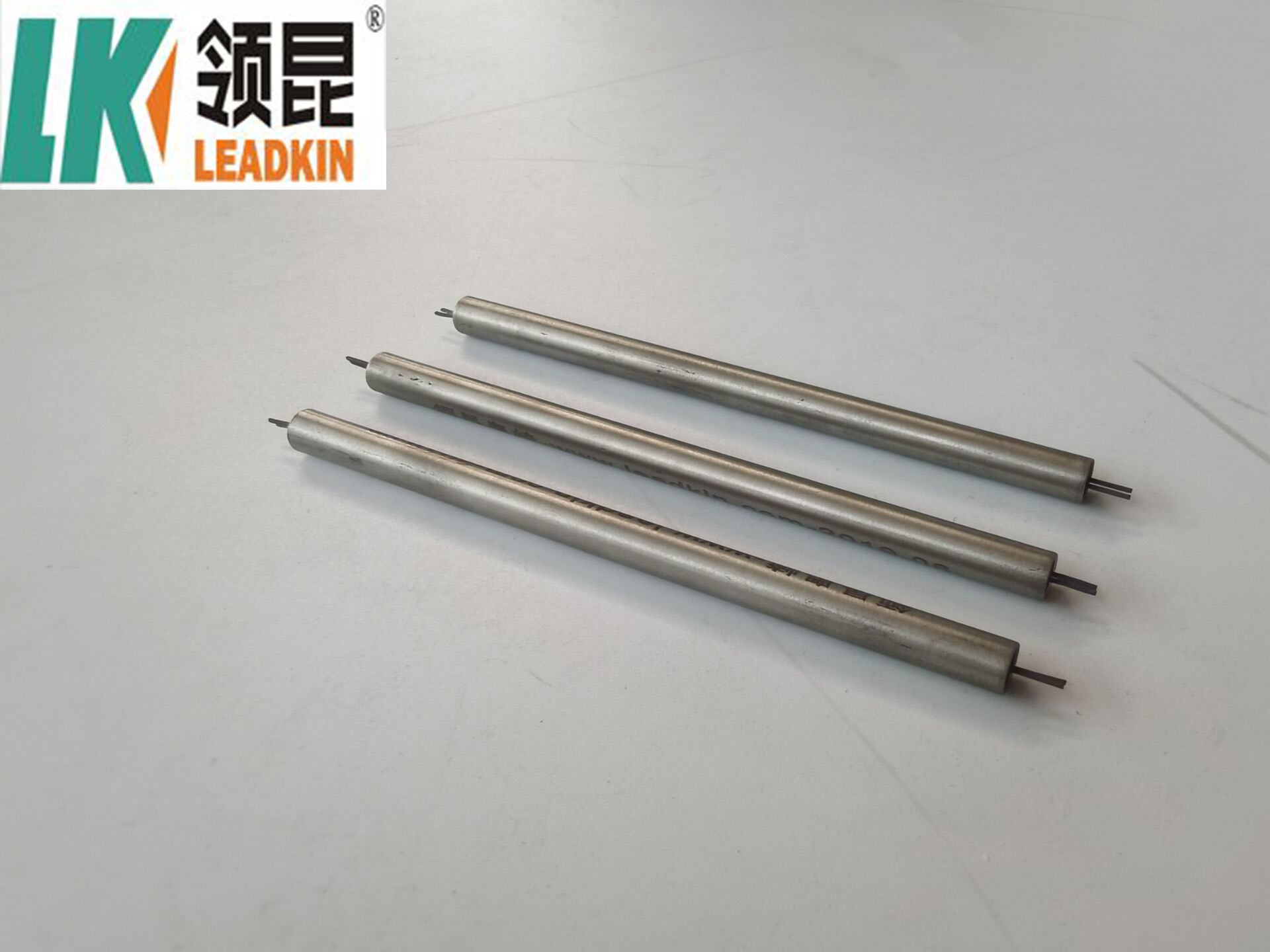

2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321 3

2.Drawing

2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321 4

3.Annealing

2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321 5

4. Polishing



5.Test

2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321 6



6. Mi cable in stock

2 Core Mineral Thermocouple Cable Insulated Heating Mi SS321 7





FAQ:



1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better .
