MICC Mineral Insulated Thermocouple Cable With MgO Magnesium Oxide Insulator
LEADKIN is a manufacturer of mineral insulated cable (MI Cable) that are used for temperature sensor - Thermocouple (Type K, J, T, N, B, R, S, C) and RTD. LEADKIN is a Thermocouple and Conductor wire in compacted ceramic insulation encased in a metallic sheath. Simply put, because we manufacture our own MI Cable, LEADKIN starts from a quality foundation few can match. Custom designs, different signal wire configurations, assorted sheath materials and a wide variety of alloys are offered.
Our product line of Mineral Insulated cable can be used under the most severe conditions that can destroy other types of thermocouple cable. Based on our rugged construction and with a large variety of sheath materials available, cable can be used in corrosive conditions up to the maximum range of the materials selected.
Quick Details:
Name:304, 310, 316, 321 Stainless Steel Sheath Material Thermocouple J K T E N 4 Wire Dual Metal Sheath MI Cable
Insulator: 99.6% high purity MgO
Core number: 4
Sheath material: SS321, SS316, SS310, Inconel600
Dia(mm): 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | ||
| Accuracy | Temp.Range | Accuracy | Temp.Range | |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |

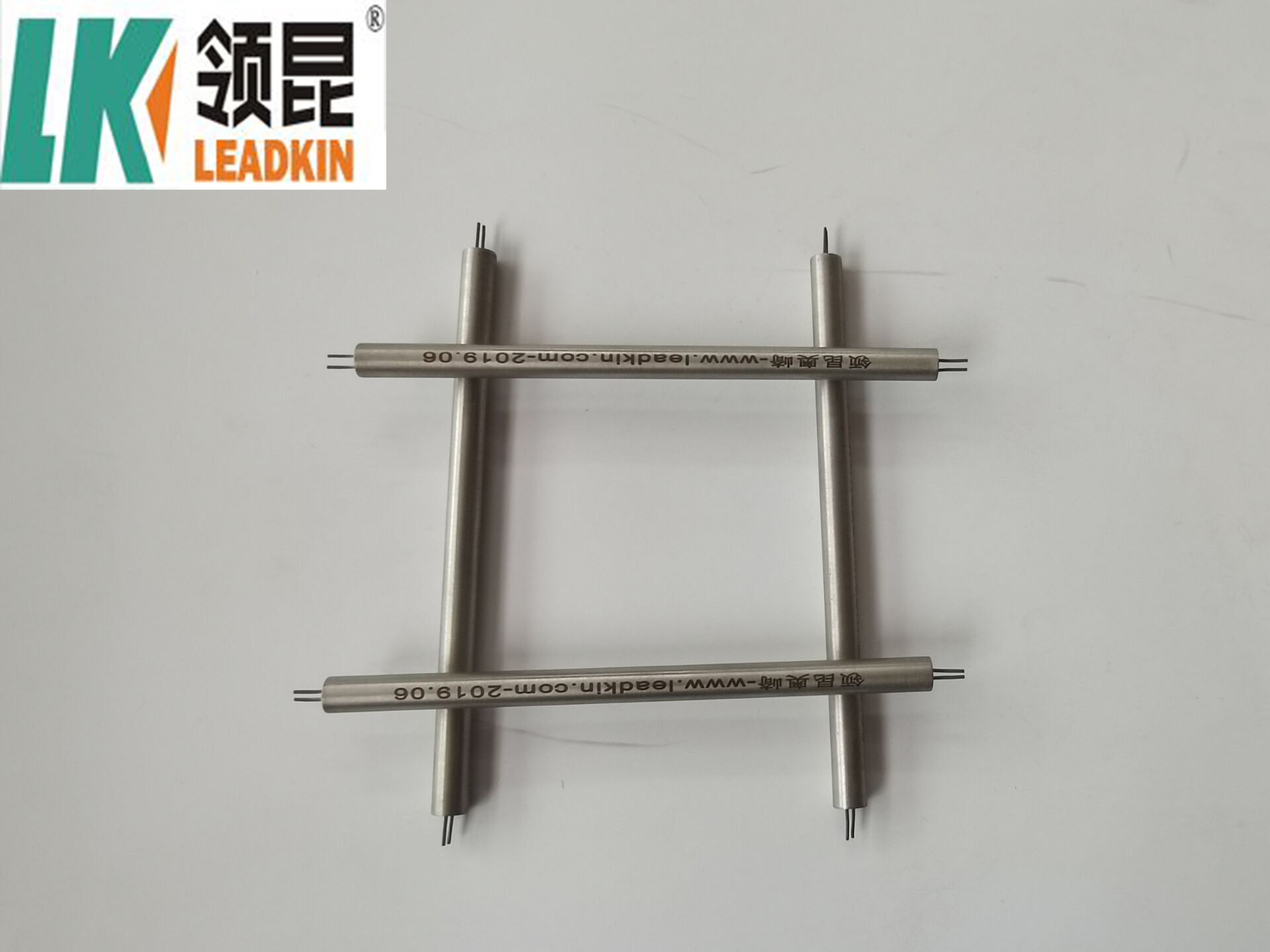

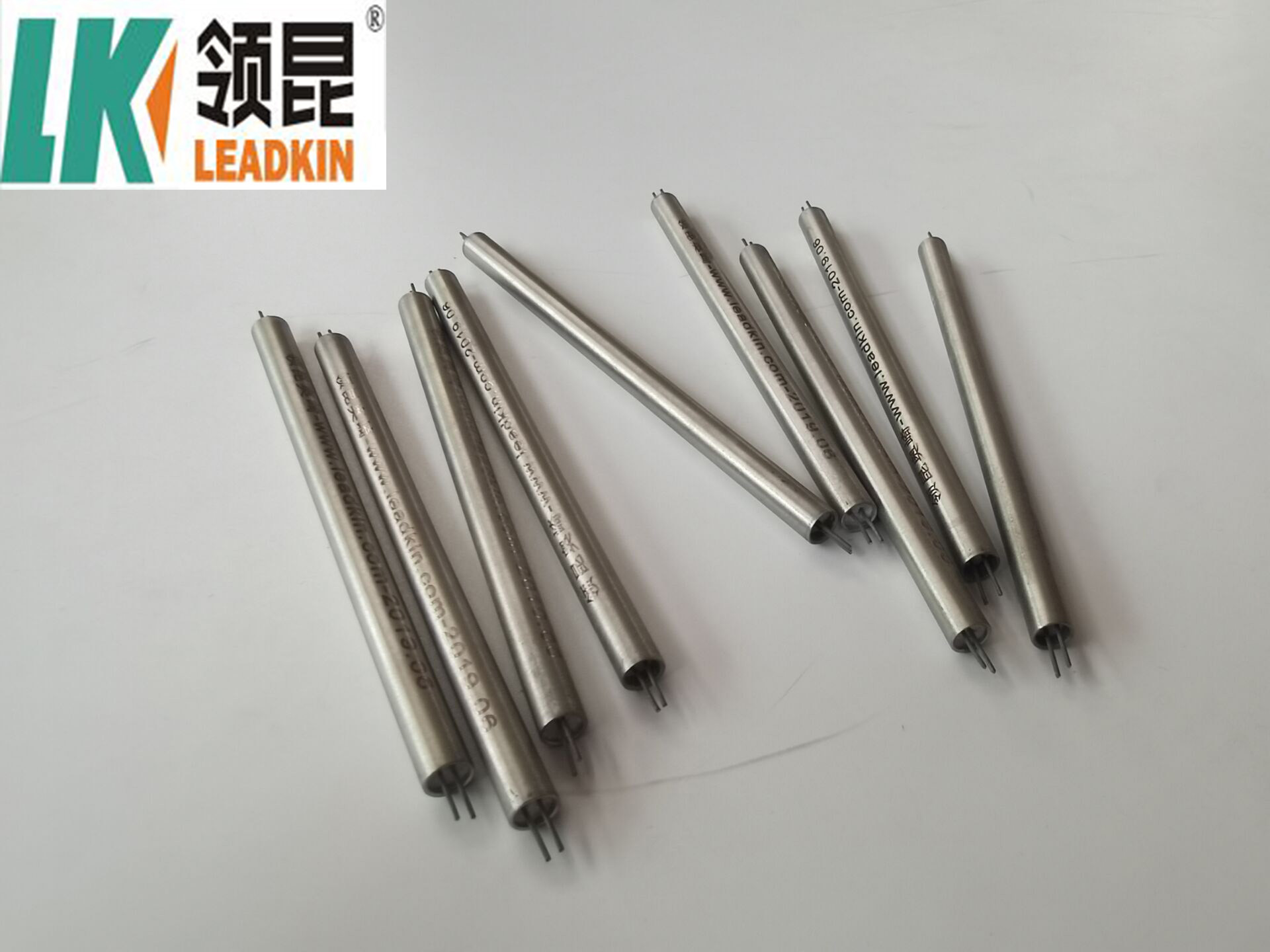

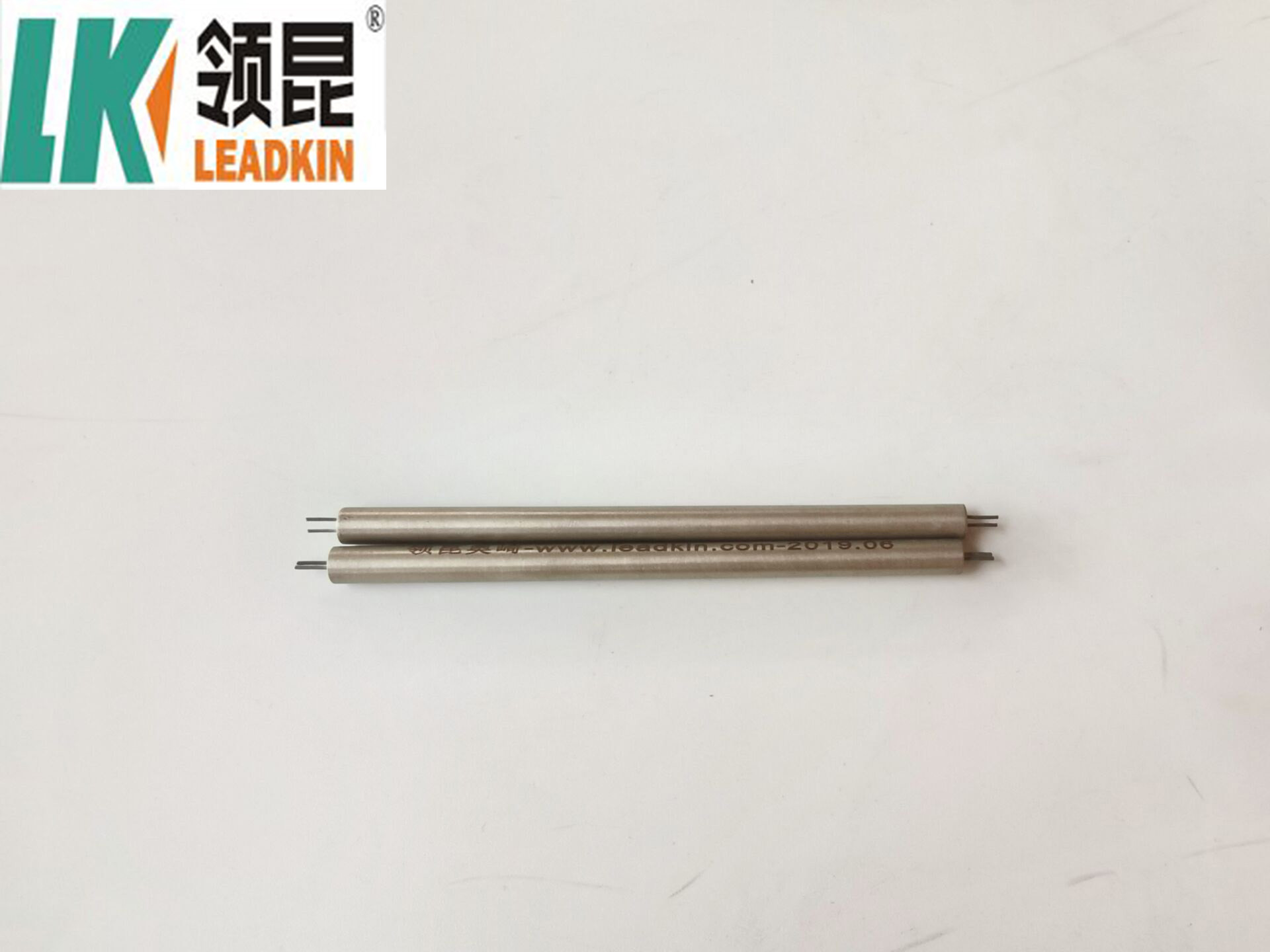

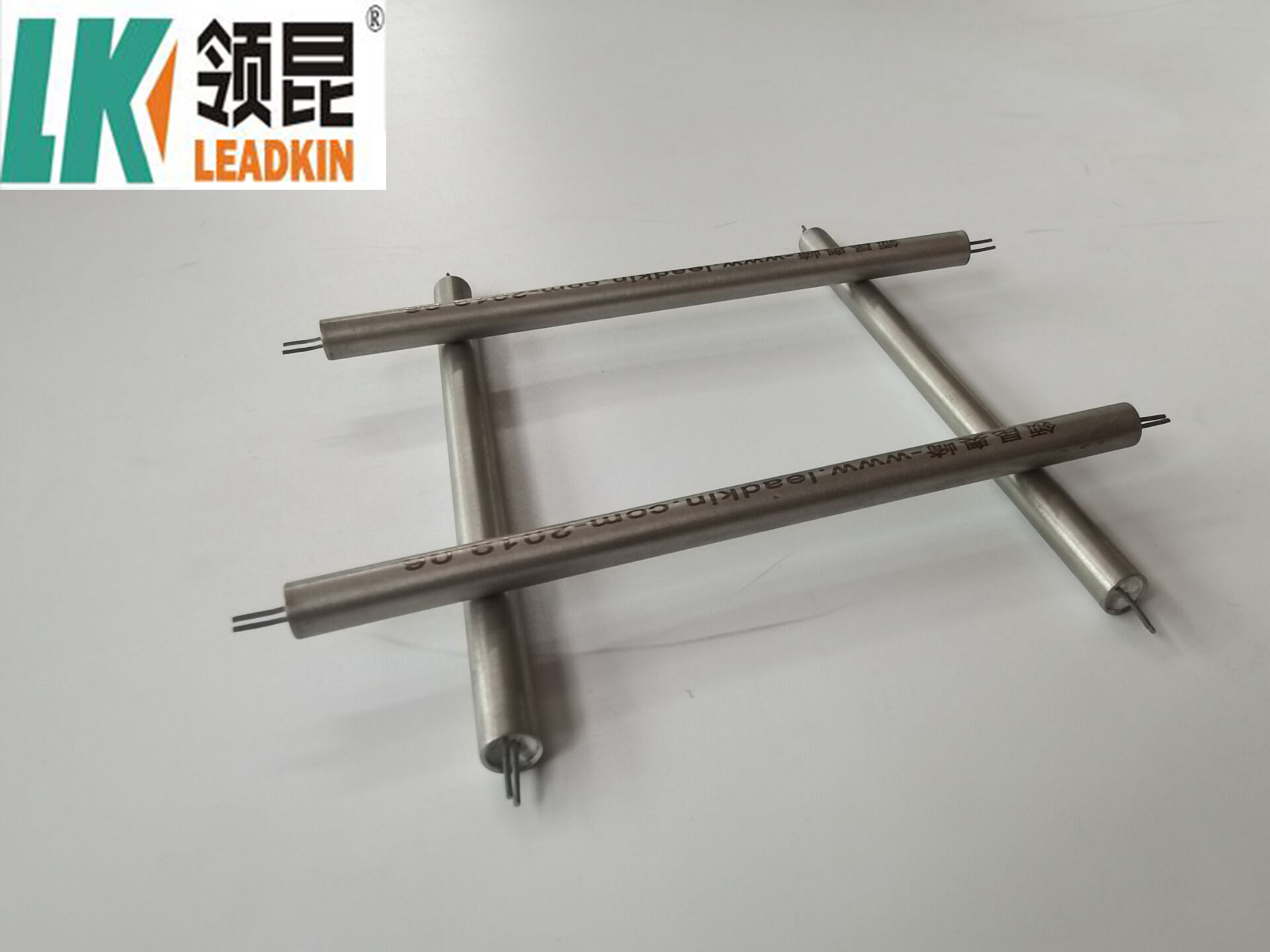

Product Pictures
Company Information:
A. Our mi cable advantage
Environment-friendly: no pickling clean armored cable
Ultra-high density: nuclear grade 2500mg/cm3
Thick wall thick wire: 40% thicker than the standard of IEC and GB
Solution heat treatment:Improve the strength, hardness, wear resistance, corrosion resistance
B. Mi cable Production line
We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.
1. Assembly
2. Drawing
3. Annealing
4. Polishing
5. Test
6. Mi cable in stock
