Mineral Insulated Cable Stainless Steel Sheath Material Thermocouple Sheath Mi Cable
MICC mineral insulated (MI) cable is composed of inorganic material namely a copper conductor or conductors, mineral insulation-magnesium oxide (MgO) and the copper sheath. As stated in the IES228 standard, the melting point of the copper conductor and sheath is 1083 degrees Celsius. The melting point of the high purity MgO is 2800 degrees is Celsius. Mi cable will continue to function reliably in an environmental temperature up to 1000 degrees Celsius. This is the unique ability of MI wiring cable over that of the traditional wiring cable. There are different ways to manufacture Mineral Insulated cable. MICC use the Seamless tube technique as opposed to a welded tube, to ensure a totally flawless cable. The purpose of MI Cable is to act as the most durable cable on the planet for mission-critical applications. Seamless tube MICC cables have no inconsistency in the metallurgic structure of the tube and no risk of introduced contaminants as there is no welding. Thus for these mission-critical applications, MICC seamless tube cables provide optimal lifetime security.
Quick Details:
Name:class 1 nicrosil nisil N type mi thermocouple cable
Type: N
Conductor material: NiCrSi-NiSi
Insulator: 99.6% high purity MgO
Core number: 2, 4
Sheath material: SS321, SS316, SS310, Inconel600
Dia(mm): 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Type for Sheath Wire Type K
Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
SS310 Inconel600 | 0.5-1.0 | 500 | |||
1.5-3.2 | 800 | ||||
4.0-6.4 | 900 | ||||
8.0-12.7 | 1000 | ||||
NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
SS310 Inconel600 | 0.5-1.0 | 500 | |||
1.5-3.2 | 800 | ||||
4.0-6.4 | 900 | ||||
8.0-12.7 | 1000 | ||||
NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
Type | Class I | Class II | ||
Accuracy | Temp.Range | Accuracy | Temp.Range | |
K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |

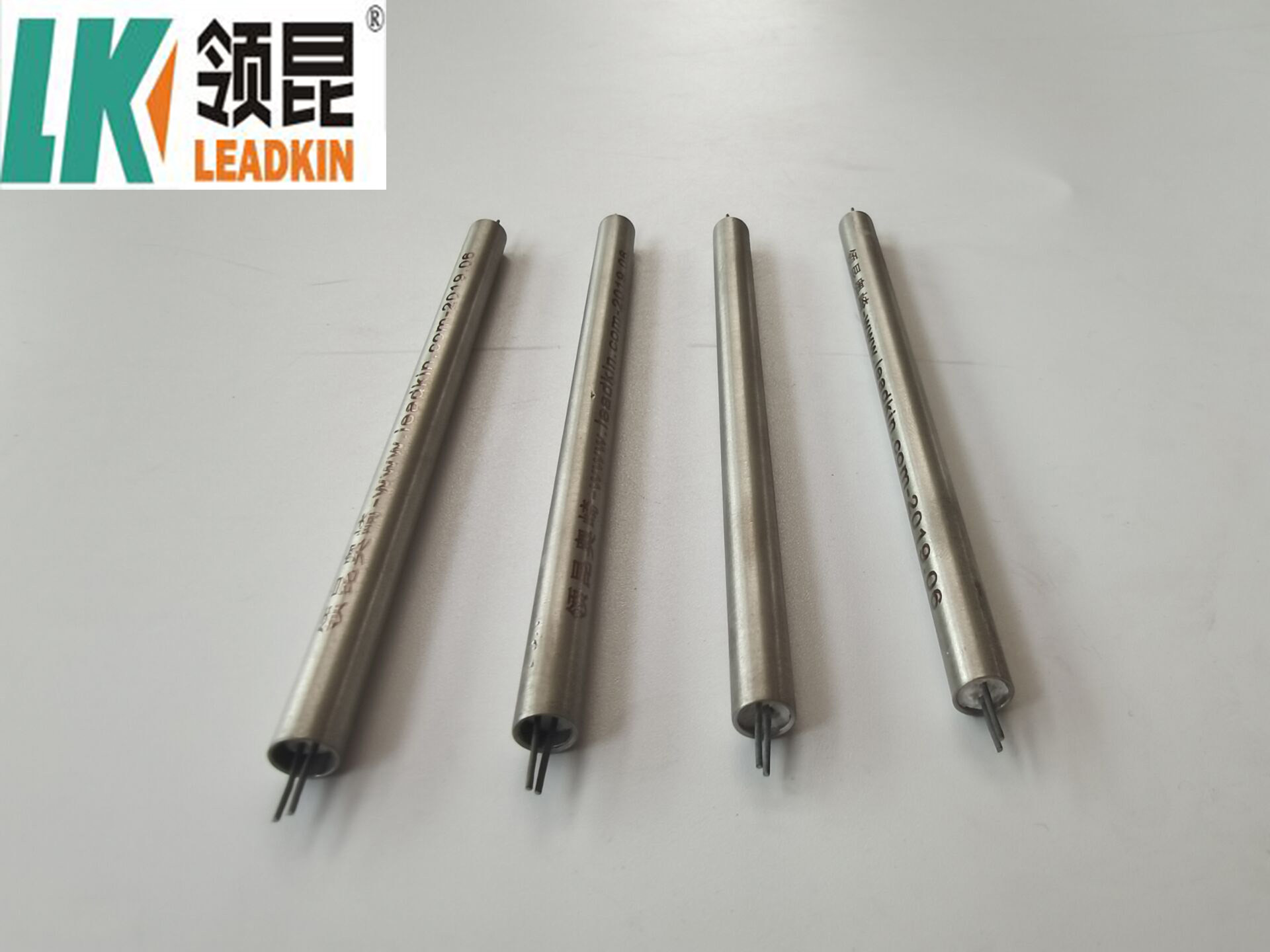

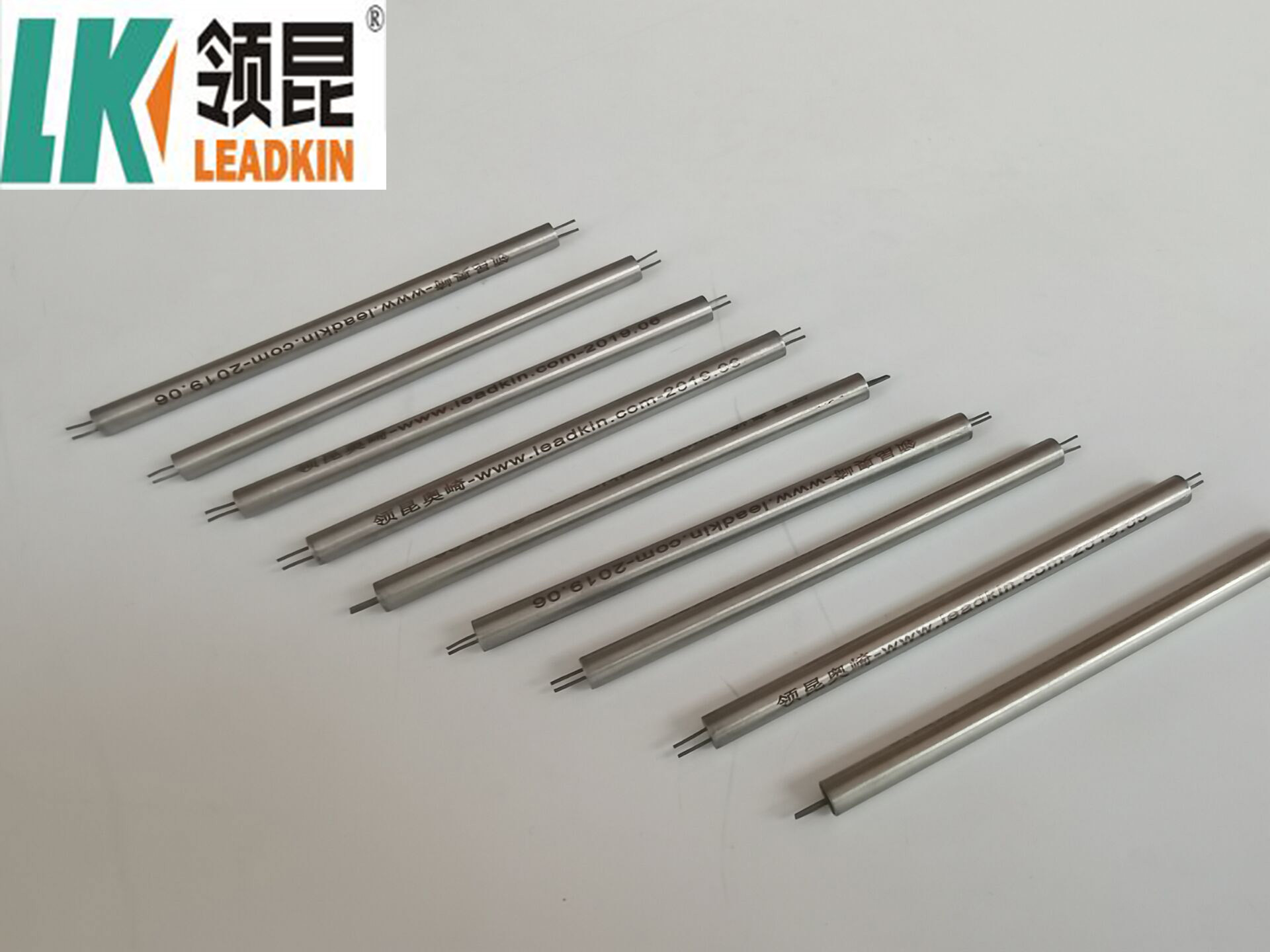

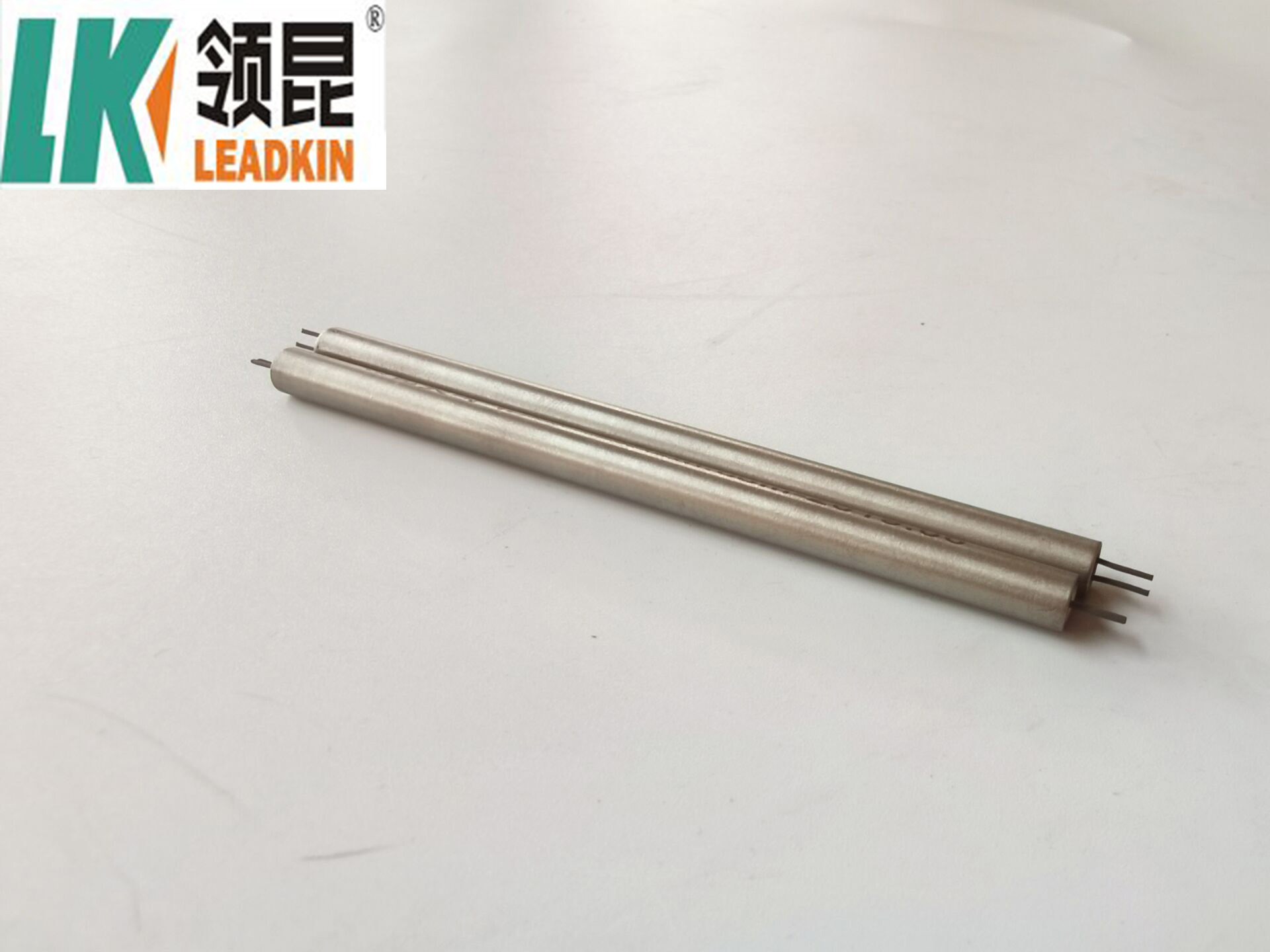

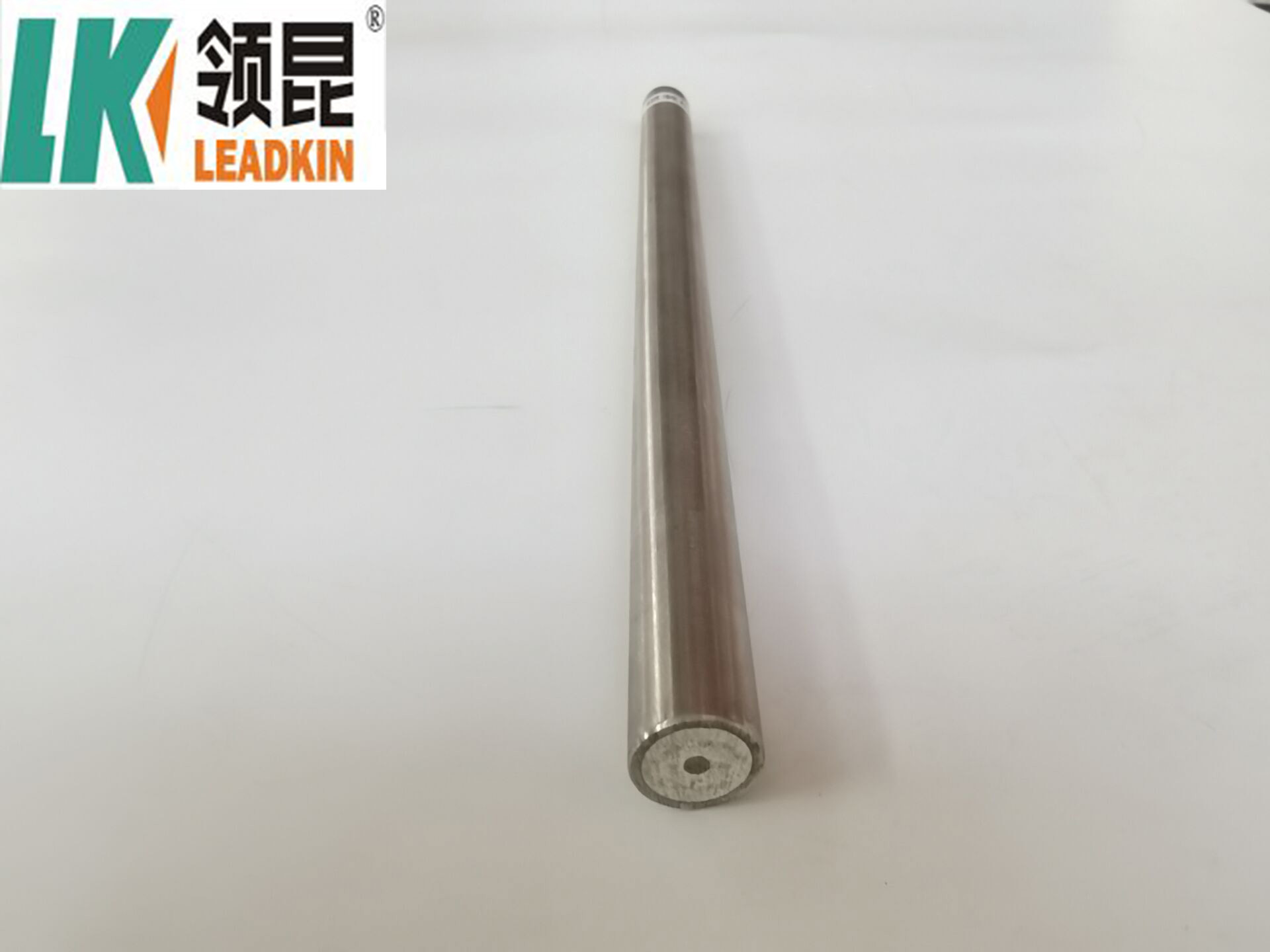

Product Pictures
Company Information:
A. Usage time Test
Armored thermocouple stability test for 6000 hours (250days)
Test 6000 hours under the ceiling temperature 820 ℃, and one time per 500 hours.
Conclusion of cyclic test the thermocouple stability: the life time about 41 years under the 600 ℃ working condition .
B. Mi cable Production line
We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.
1.Assembly
2.Drawing
3.Annealing
4. Polishing
5.Test
6. Mi cable in stock
