Metal Mineral Insulated Heating Thermocouple Cable Customsized
| Name: | Incl600 Ss310 Ss316 Sheathed Mi Cable For Thermocouple Probe | Jacket: | Stainless Steel |
| Outside Dia: | 0.5-12.7mm | Usage: | Industrial |
| Mgo: | ≥99.6% | Function: | High Temperature Test |
| Insulation: | MgO | Theory: | Temperature Sensor |
| High Light: | MgO Insulated Heating Cable,Customsized Mineral Thermocouple Cable,MgO Mineral Thermocouple Cable |
||
Customsized Metal Mineral Insulated Heating Cable Thermocouple Cable
Quick Details:
Name:incl600 ss310 ss316 Sheathed Mi Cable for thermocouple probe
Type: K,J,E,T,N
Conductor material: NiCr-NiAl
Insulator: 99.6% high purity MgO
Core number: 2, 4
Sheath material: SS321(SS304), SS316, SS310, Inconel600
Dia(mm): 0.5mm to 12.7mm
- Fireproof: Mi cable will not burn, or support combustion. By continuing to function when exposed to fire, it maintains vital emergency services. The inorganic bare cable will not emit smoke, toxic gas propagate flame.
- Wiring ad Cable and Conduit Combined: The cable sheath provides an excellent earthing medium and core protection, yet the overall diameter is smaller than other types of cables with equivalent current ratings and it is sufficiently pliable to permit intricate routing.
- Pliable: MICC MI cable is fully annealed and consequently extremely malleable, enabling it to be easily bent to follow intricate shapes without detriment to its electrical characteristics.
- Inherent Flameproof Barrier: MICC MI cable has a solid construction with a non-flammable sheath. The highly compacted insulation will resist the transmission of vapours, gases or flames between items of equipment connected by the cable.
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | ||
| Accuracy | Temp.Range | Accuracy | Temp.Range | |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |

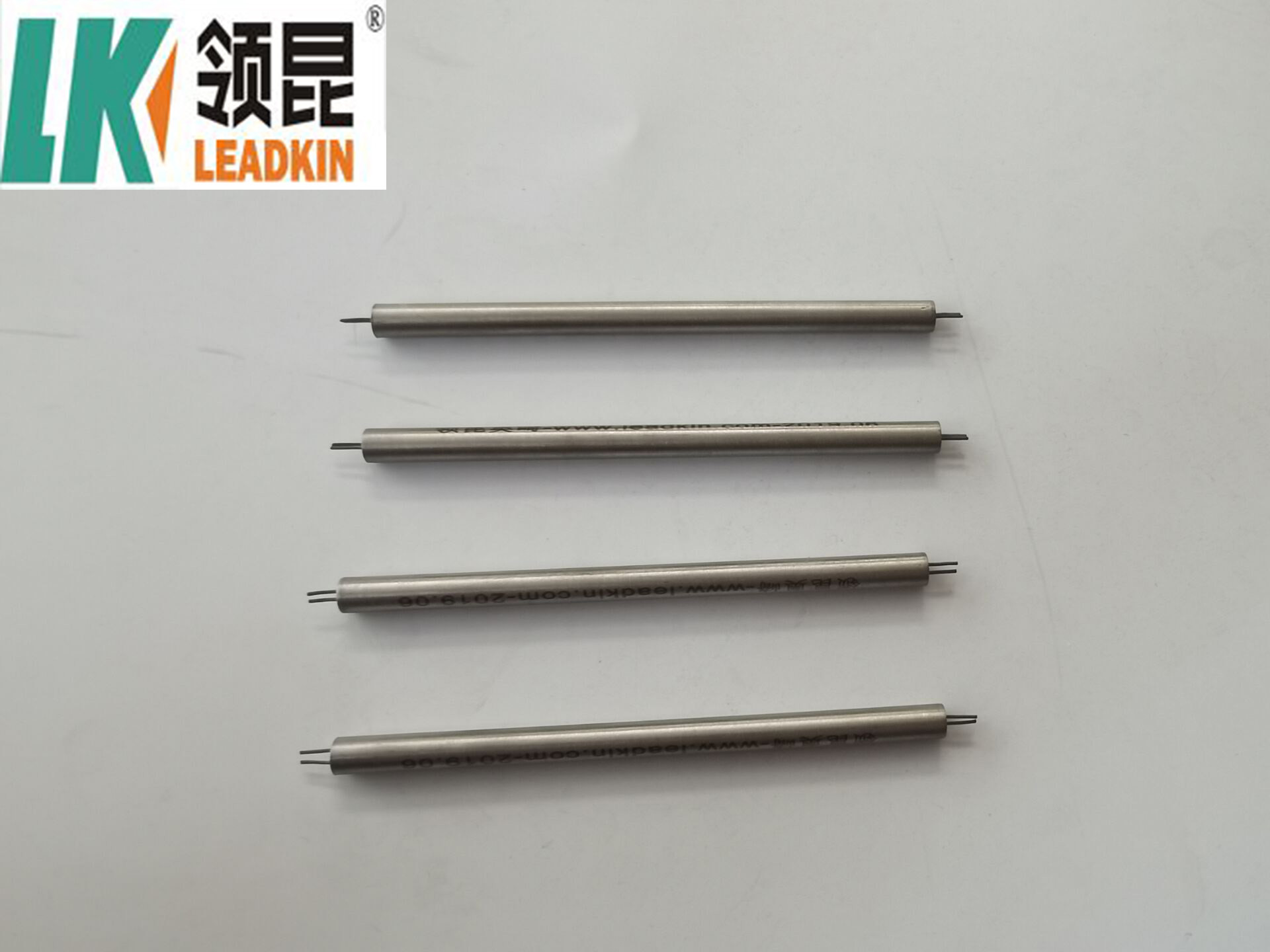

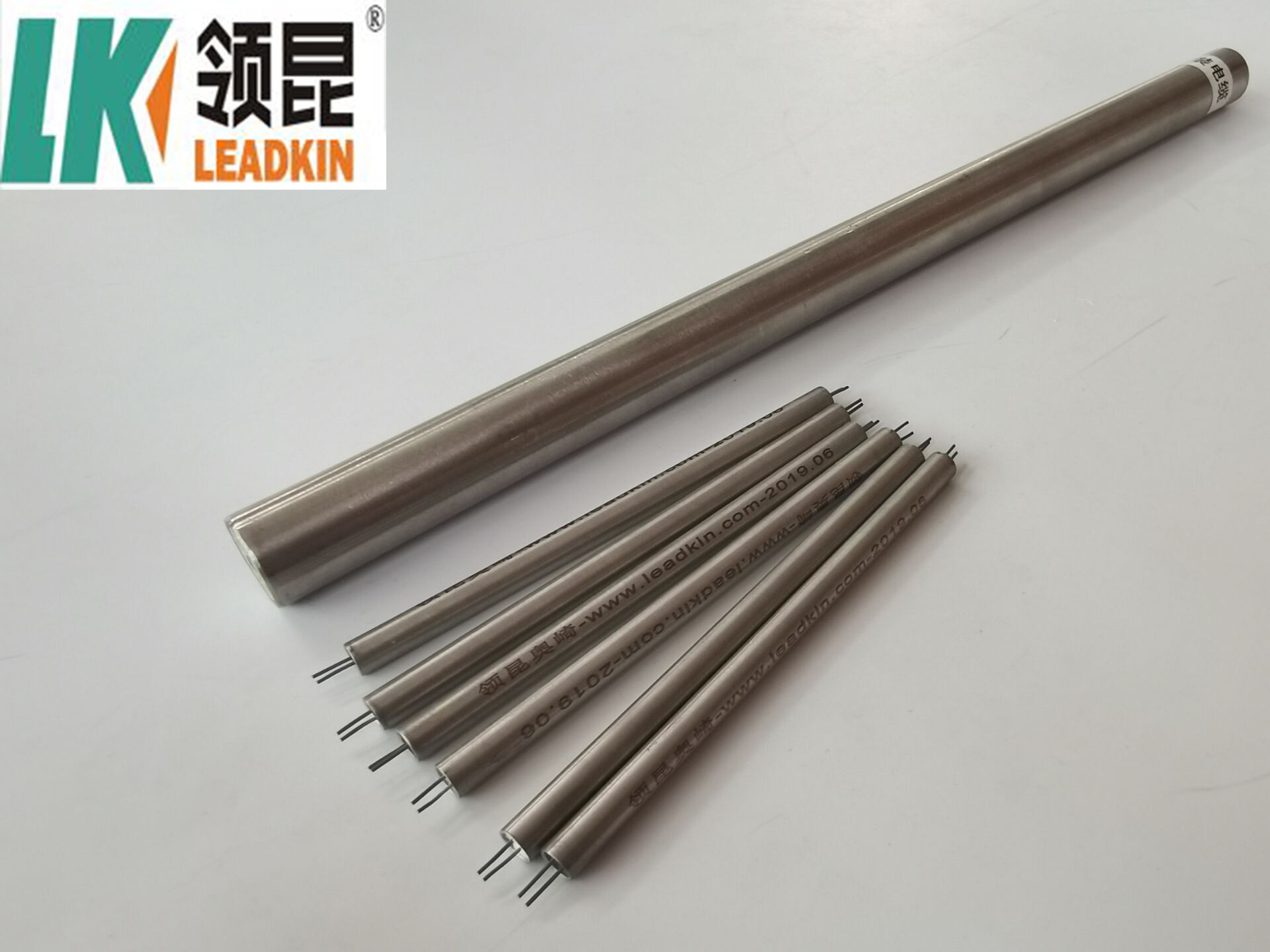

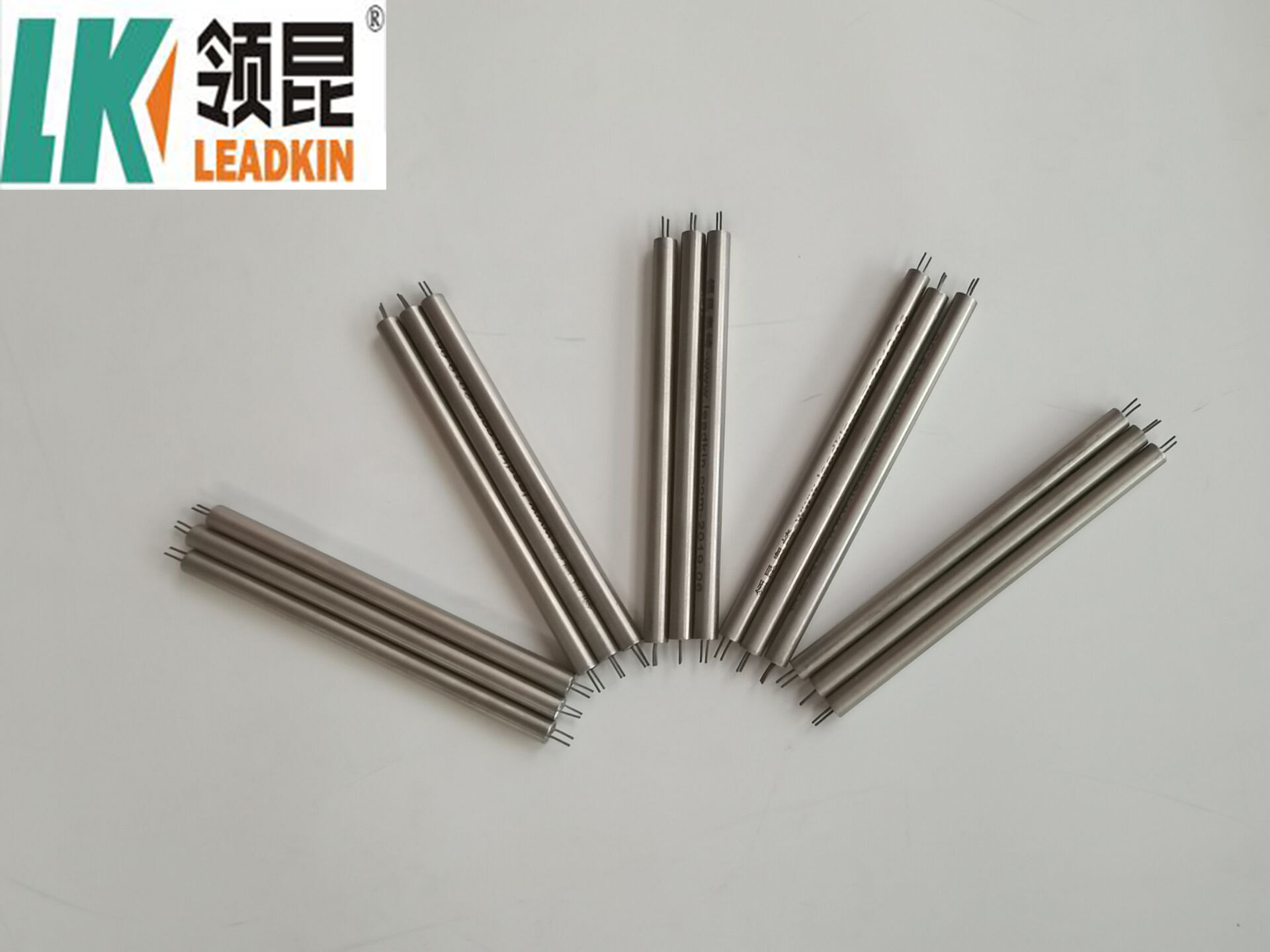

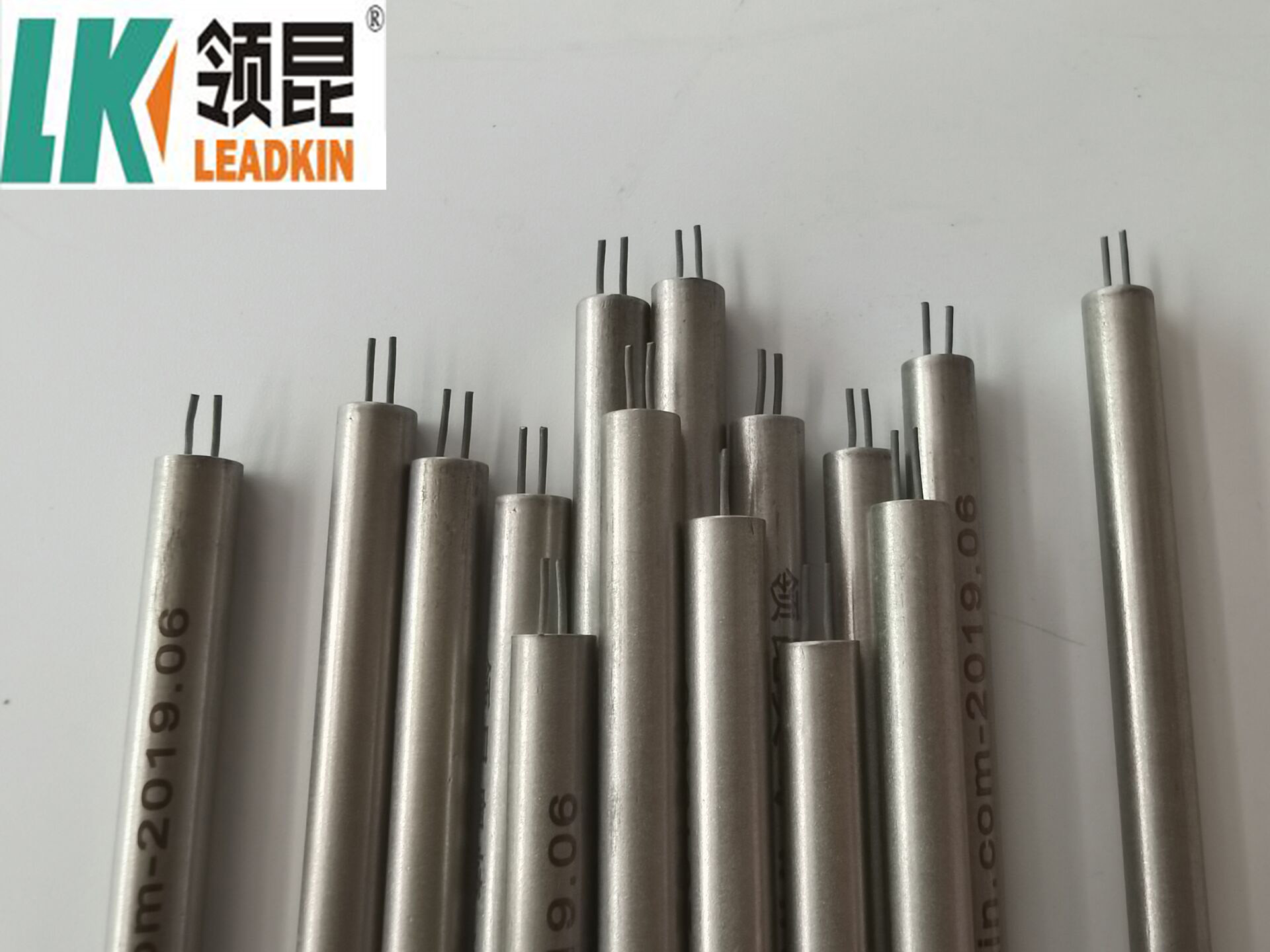

Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Mi cable Production line
We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.
1.Assembly
2.Drawing
3.Annealing
4. Polishing
5.Test
6. Mi cable in stock
