SS304 Sheath Mineral Insulated Thermocouple Cable Type K

100M
MOQ
USD 0.99-30/M
Price
SS304 Sheath  Mineral Insulated Thermocouple Cable Type K
Features Gallery Product Description Request A Quote
Features
Specifications
Sheath Material: SS304,SS321,SS316,310S,Inconel600
Calibration: K,N,E,J,T,R,B,S,Pt100
Dia: 0.5mm-12.7mm
Name: High Temperature Maintenance Mineral Insulated Cables MI Armored Heating Cable
Purity Of MgO: ≥99.6%
Sample: Free
Package: Carton
Type: Single Double
High Light:

Type K Mineral Insulated Thermocouple Cable

,

SS304 Sheath Mineral Insulated Thermocouple Cable

,

Mineral Thermocouple Extension Cable Type K

Basic Infomation
Place of Origin: CHINA
Brand Name: LEADKIN
Certification: ISO,
Model Number: LK-K
Payment & Shipping Terms
Packaging Details: 68*68*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1,000,000M/year
Product Description

SS304 Sheath Mineral Insulated Thermocouple Cable Type K

Since MI mineral insulated heating cable is made of metal and inorganic insulating materials, it has significantly different advantages than other heating cables or heating cables made of plastic insulation. Due to its special structure, it has the following characteristics:
1. Because its components are all composed of non-combustible inorganic substances, the product is fireproof, flame-retardant, and does not generate toxic gases. Because the heating cable has a reliable metal tube seal and good grounding, it is especially suitable for various explosion-proof places.
2. Because the magnesium oxide insulating material can remain stable when the temperature is as high as 550℃. Therefore, the operating temperature limit of the heating cable itself is the highest temperature that the core and metal outer sheath can withstand.
3. The insulation layer of the product, magnesium oxide, is an inorganic substance, and the core and outer sheath are both made of metal, so the aging problem is fundamentally solved, and the service life of the heating cable is greatly extended. The service life can reach several decades under specified conditions.
4. The product adopts different outer sleeves, which can withstand the erosion of oil solvents and most acids, and has good chemical stability.



Quick Details:

 Name:High Temperature Maintenance Mineral Insulated Cables MI Armored Heating Cable

Type: K,N,E,J,T,R,B,S,Pt100

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell

Dia(mm):  0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Zhejiang, China (Mainland)

Eco-friendly: Yes

MOQ: 100m

Certificate: ISO

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C



Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100





Accuracy for Sheath Wire Type K



Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃



Product Pictures

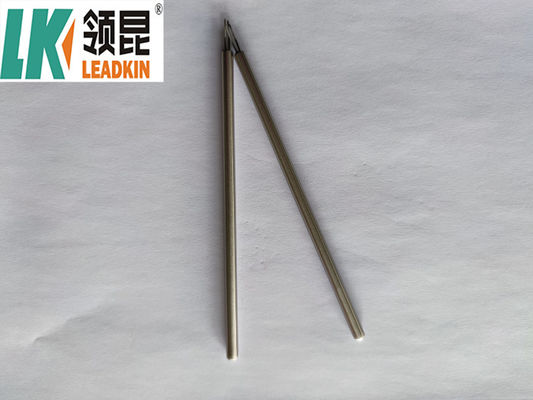

SS304 Sheath  Mineral Insulated Thermocouple Cable Type K 0



SS304 Sheath  Mineral Insulated Thermocouple Cable Type K 1



SS304 Sheath  Mineral Insulated Thermocouple Cable Type K 2

Company Information:

A. Main Products



SS304 Sheath  Mineral Insulated Thermocouple Cable Type K 3

B. Package



We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.



SS304 Sheath  Mineral Insulated Thermocouple Cable Type K 4



SS304 Sheath  Mineral Insulated Thermocouple Cable Type K 5



C. Warehouse

We have great amount mi cable in stock. We expecting your visiting.

SS304 Sheath  Mineral Insulated Thermocouple Cable Type K 6
