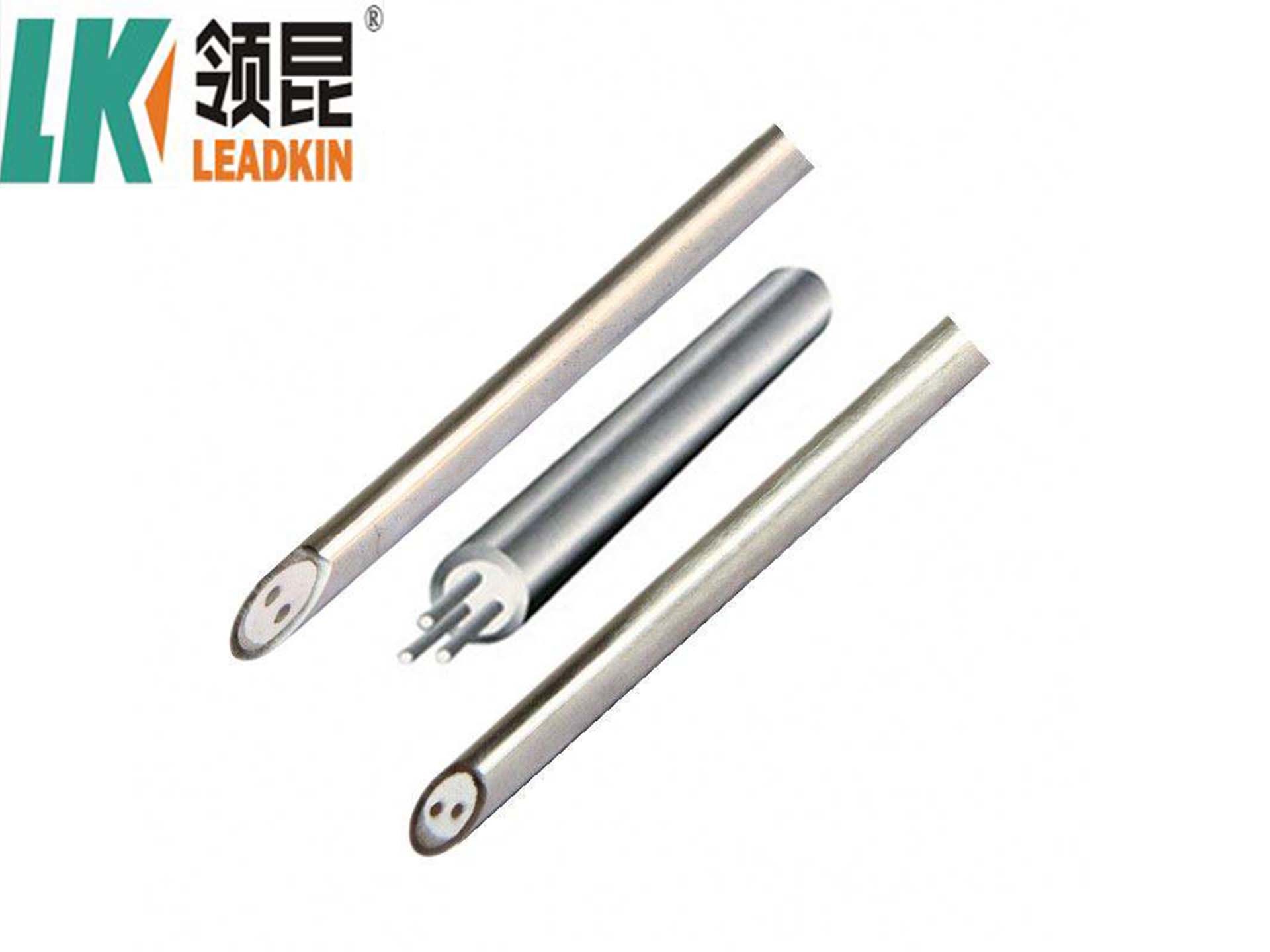

China Factory Low Price With Good Quality Sheath Mi Cable 6.4mm
Quick Details:
Name:China Factory Low Price With Good Quality Sheath Mi Cable 6.4mm
Type: K/N/E/J/T
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan
Sheath material: SS321(SS304), SS316,SS310,INCONEL600
Dia(mm): 0.25mm to 12.7mm
Material
|
Type
|
Grade
|
Working temperature (deg)
|
Tolerance
|
Standard
|
|
Long Term
|
Short Term
|
|||||
NiCr-NiSi
|
K
|
1
|
-40~1100
|
-40~1300
|
±1.5 deg
|
GB/T 2614-1998
|
2
|
±2.5 deg
|
|||||
NiCr-CuNi
|
E
|
1
|
-40~800
|
-40~900
|
±1.5 deg
|
GB/T 4993-1998
|
2
|
±2.5 deg
|
|||||
Fe-Constantan
|
J
|
1
|
-40~600
|
-40~800
|
±1.5 deg
|
GB/T 4994-1998
|
2
|
±2.5 deg
|
|||||
Cu-CuNi
|
T
|
1
|
-200~300
|
-200~400
|
±0.5 deg
|
GB/T 2903-1998
|
|
|
Type for Sheath Wire Type K
Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
SS310 Inconel600 | 0.5-1.0 | 500 | |||
1.5-3.2 | 800 | ||||
4.0-6.4 | 900 | ||||
8.0-12.7 | 1000 | ||||
NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
SS310 Inconel600 | 0.5-1.0 | 500 | |||
1.5-3.2 | 800 | ||||
4.0-6.4 | 900 | ||||
8.0-12.7 | 1000 | ||||
NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
1.5-3.2 | 600 | ||||
4.0-8.0 | 800 | ||||
RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Exihibition
FAQ:
1. Accurate quotation. |
2. Confirm the price, trade term, lead time, payment term etc. |
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal. |
4. Customer arranges the payment for deposit and sends us bank slip. |
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
6. End Production-Mass production products photos. |
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients. |
8. The order is finished perfectly when you receive the goods and get satisfied with them . |
9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better . |
