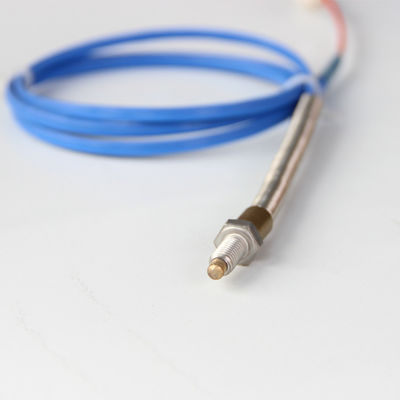

K Type Thermocouple Temperature Probe PT100 RTD Temperature Sensor For Engine Exhaust Gas Systems
Thermocouples measure temperature based on voltage potential. They consist of two dissimilar electrical conductors that are joined in electrical junctions. When the junctions are at different temperatures, it produces a temperature-dependent voltage as a result of the thermoelectric effect, and you can interpret this voltage to measure temperature.
LEADKIN Industries manufactures reliable and robust industrial thermocouple sensors. Thermocouples provide fast temperature response that can be applied in most temperature measurement and control applications. We are prepared to provide the best thermocouple temperature sensor solutions.
Quick Details:
Name:EGT Thermocouple K Type 1/8" NPT Temperature Probe Sensors Exhaust Gas Temp Probe With Exposed Tip & Connector,Stainless
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell
Dia(mm): 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Zhejiang, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | ||
| Accuracy | Temp.Range | Accuracy | Temp.Range | |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |
Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Warehouse
We have great amount mi cable in stock. We expecting your visiting.
