High Temperature Surface K Type Thermocouple Probe Wear Resistance

100M
MOQ
USD 0.99-30/M
Price
High Temperature Surface K Type Thermocouple Probe Wear Resistance
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket: 310S,Inconel600
Core: Single,double
Calibration: K,N,E,J,T,R,B,S,Pt100
Dia: 0.5mm-12.7mm
Name: EGT Thermocouple K Type 1/8" NPT Temperature Probe Sensors Exhaust Gas Temp Probe With Exposed Tip & Connector,Stainless
Purity Of MgO: ≥99.6%
Cudtomizable: Yes
Theory: Industrial Temperature Test
High Light:

Wear Resistance K Type Thermocouple Probe

,

High Temperature K Type Thermocouple Probe

,

1/8" NPT Thermocouple Temperature Probe

Basic Infomation
Place of Origin: CHINA
Brand Name: LEADKIN
Certification: ISO,
Model Number: LK-KK
Payment & Shipping Terms
Packaging Details: 68*68*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1,000,000M/year
Product Description

High Temperature Surface Wear-Resistance K Type Thermocouple Probe



A thermocouple junction is a single point junction between two dissimilar metals. This junction creates a known millivolt level signal that changes as the process temperature increases or decreases. The millivolt signal is used as the temperature measurement input to a temperature controller.



Depending on an application's process temperature range, accuracy specifications, and material compatibility, our sensors are available in Type K thermocouples, Type J thermocouples, Type E thermocouples, Type T thermocouples, Type S thermocouples, Type R thermocouples, and other dissimilar metal combinations. Durex Industries manufactures thermocouple temperature sensors that can be designed with grounded or ungrounded junctions and housed in insulated sheath materials that are designed for best form fit in the applications.



Quick detail

Name:EGT Thermocouple K Type 1/8" NPT Temperature Probe Sensors Exhaust Gas Temp Probe With Exposed Tip & Connector,Stainless

Type: K,N,E,J,T,R,B,S,Pt100

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell

Dia(mm):  0.25mm to 12.7mm

Eco-friendly: Yes

MOQ: 100m

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C



Type for Sheath Wire Type K



Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100



Accuracy for Sheath Wire Type K



Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃



Product Pictures

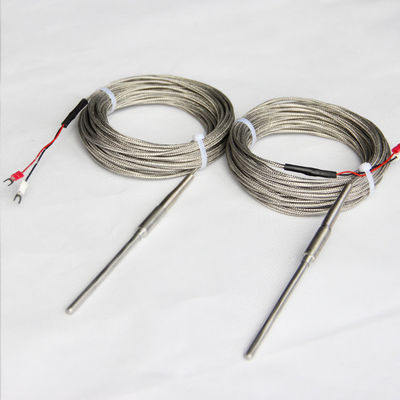

High Temperature Surface K Type Thermocouple Probe Wear Resistance 0



High Temperature Surface K Type Thermocouple Probe Wear Resistance 1



Order Notice:



1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
