Pt100 RTD K Type Thermocouple Temperature Probe Screw Thread Connection

100M
MOQ
USD 0.99-30/M
Price
Pt100 RTD K Type Thermocouple Temperature Probe Screw Thread Connection
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket: 310S,Inconel600
Core: Single,double
Calibration: K,N,E,J,T,R,B,S,Pt100
Dia: 0.5mm-12.7mm
Name: EGT Thermocouple K Type 1/8" NPT Temperature Probe Sensors Exhaust Gas Temp Probe With Exposed Tip & Connector,Stainless
Purity Of MgO: ≥99.6%
Cudtomizable: Yes
Theory: Industrial Temperature Test
Highlight:

Screw Thread Connection Thermocouple Temperature Probe

,

K Type Thermocouple Temperature Probe

,

RTD Temperature Sensor Probe

Basic Infomation
Place of Origin: CHINA
Brand Name: LEADKIN
Certification: ISO,
Model Number: LK-KK
Payment & Shipping Terms
Packaging Details: 68*68*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1,000,000M/year
Product Description

Pt100 RTD Thermocouple K Temperature Sensor Probe Screw Thread Connection

  • Sheath - Tolerances: Outside diameter ± 0.002” of nominal size.
  • Finish - Bright annealed, 32 micro-inch or better.
  • Insulation - High purity magnesium oxide is standard; ultra high purity magnesium oxide and alumina oxide are available.
  • Configurations - Sheath diameters available from 0.020" to 0.500". Two wire (single circuit) and four wire (double circuit) configurations are standard in most diameters.
  • Formability - Minimum radiums: 2X sheath diameter for most thermocouple materials. Consult Durex Industries if special forming is required.
  • Weldability - Thermocouple sheath can be brazed, soldered, or welded without loss of insulation resistance. Welding of special sheath materials by the customer is not recommended.



Quick detail

Name:EGT Thermocouple K Type 1/8" NPT Temperature Probe Sensors Exhaust Gas Temp Probe With Exposed Tip & Connector,Stainless

Type: K,N,E,J,T,R,B,S,Pt100

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell

Dia(mm):  0.25mm to 12.7mm

Eco-friendly: Yes

MOQ: 100m

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C



Type for Sheath Wire Type K



Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100



Accuracy for Sheath Wire Type K



Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃



Product Pictures

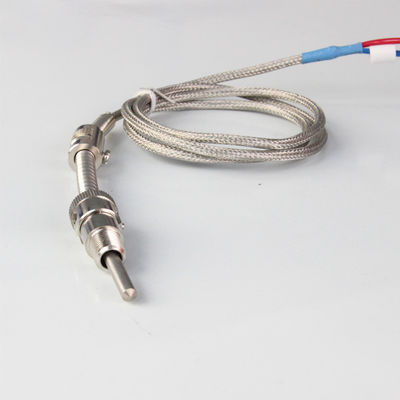

Pt100 RTD K Type Thermocouple Temperature Probe Screw Thread Connection 0



Pt100 RTD K Type Thermocouple Temperature Probe Screw Thread Connection 1
