K Type Probe Thermocouple Temperature Sensor Cable 3 Meters
There are several types of electronic temperature sensors. Each has its technical advantages and disadvantages depending on the intended purpose or application of the sensor. A common choice for commercial and professional instruments is the thermocouple. A thermocouple is made of two wires of different alloys. They are welded together to form the “thermocouple”. This assembly of wires produces a voltage that changes with temperature. That voltage can be measured, processed and displayed as a temperature. Different alloys perform differently. Over decades, industry has settled on several specific thermocouple “types” that each use a specific combination of specific alloys. The most common is the “type K” thermocouple (See Thermoworks Type K Thermocouples), which is made from the two metals, Chromel and Alumel. It is the most frequently used type in general industrial use, science, food processing and food service.
Quick Details:
Name:EGT Thermocouple K Type For Exhaust Gas Temp Probe With Exposed Tip & Connector
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell
Dia(mm): 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Zhejiang, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | ||
| Accuracy | Temp.Range | Accuracy | Temp.Range | |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |

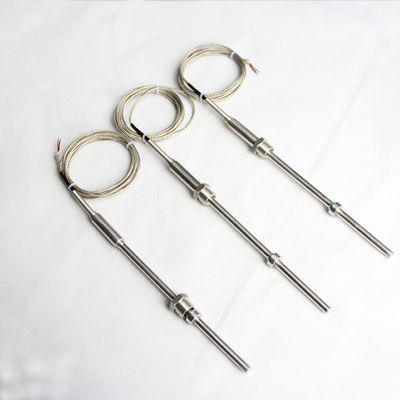

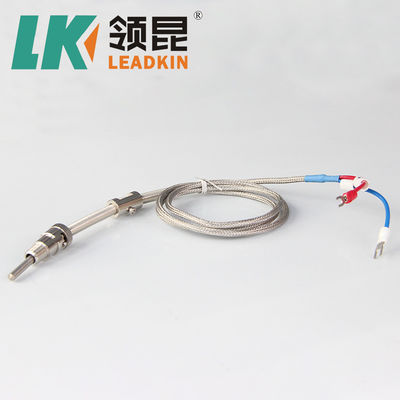

Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Warehouse
We have great amount mi cable in stock. We expecting your visiting.
