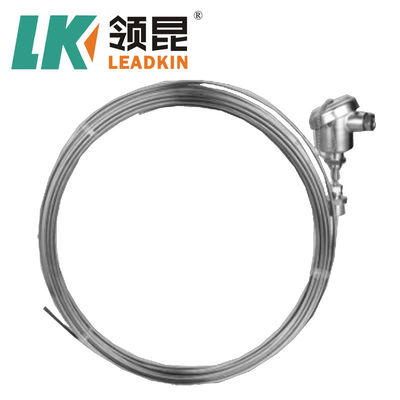

Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe

100M
MOQ
USD 0.99-30/M
Price
Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe
Features Gallery Product Description Request A Quote
Features
Specifications
Sheath Material: 310S,Inconel600
Calibration: K,N,E,J,T,R,B,S,Pt100
Dia: 0.5mm-12.7mm
Name: K-Type Exhaust Gas Probe Thermocouple Temperature EGT Sensor
Purity Of MgO: ≥99.6%
Sample: Free
Package: Carton
Type: Single Double
Highlight:

Pt100 K Type Thermocouple Probe

,

Rtd Thermocouple Temperature Probe

,

Sensor K Type Thermocouple Probe

Basic Infomation
Place of Origin: CHINA
Brand Name: LEADKIN
Certification: ISO,
Model Number: LK-K
Payment & Shipping Terms
Packaging Details: 68*68*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1,000,000M/year
Product Description

K Type Thermocouple Probe Pt100 Rtd Thermocouple Temperature Sensor



  • Temperature range: Most practical temperature ranges, from cryogenics to jet-engine exhaust, can be served using thermocouples. Depending on the metal wires used, a thermocouple is capable of measuring temperature in the range –200°C to +2500°C.
  • Robust: Thermocouples are rugged devices that are immune to shock and vibration and are suitable for use in hazardous environments.
  • Rapid response: Because they are small and have low thermal capacity, thermocouples respond rapidly to temperature changes, especially if the sensing junction is exposed. They can respond to rapidly changing temperatures within a few hundred milliseconds.
  • No self heating: Because thermocouples require no excitation power, they are not prone to self heating and are intrinsically safe.



Quick Details:

 Name:K-Type Exhaust Gas Probe Thermocouple Temperature EGT Sensor

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell

Dia(mm):  0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Zhejiang, China (Mainland)

Eco-friendly: Yes

MOQ: 100m

Certificate: ISO

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C



Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100





Accuracy for Sheath Wire Type K



Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃



Product Pictures



Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe 0



Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe 1



Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe 2

Company Information:

A. Main Products



Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe 3

B. Package



We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.



Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe 4



Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe 5



C. Warehouse

We have great amount mi cable in stock. We expecting your visiting.

Pt100 Rtd Thermocouple Temperature Sensor K Type Thermocouple Probe 6







FAQ:



1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better .
