Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable

50M
MOQ
USD 0.5-6.0/M
Price
Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: LEADKIN
Insulation: MgO
Warranty: 1 Year
Temperature Range: 0-1100℃
Accuracy: Class I
Outside Dia: 0.5-12.7mm
Package: Carton. Pallet
Function: Temperature Test
Factory: Yes,production Line
Sheath: SUS316, INCONEL600
Theory: Temperature Sensor
Cable Length: 1-5m Or Customized
Certification: ISO9001, IATF16949, CE
Name: SS316 ,SUS304,inconle Shielded K Type Thermocouple Cable MgO 99.6,0.5mm -12.7
Highlight:

mineral insulated thermocouple cable MI

,

MI mineral insulated thermocouple cable

,

Stainless Steel Sheath mineral insulated thermocouple

Basic Infomation
Place of Origin: NINGBO CHINA
Brand Name: LEADKIN
Certification: ISO9001, IATF16949, CE
Model Number: LK-K
Payment & Shipping Terms
Packaging Details: 70*70*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000,000M/year
Product Description

Quick Details:

 Type: K

Core number: 2, 4

Dia(mm): 0.25mm to 12.7mm

Conductor material: NiCr-NiSi

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Sheath material: Inconel600, Nicrobell

Place of Origin: Zhejiang, China (Mainland)

Application: connecting with thermocouple and instrument machine

Name:SS316 ,SUS304,inconle Shielded K Type Thermocouple Cable MgO 99.6,0.5mm -12.7





Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100





Accuracy for Sheath Wire Type K

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃



About this product:

  • High-Temperature Resistance:Our MI sheathed high-temperature heating cables are designed to withstand extreme temperature, making them suitable use in various industrial applications, including those in areas with high-temperature fluctuations.
  • Customization Option: We offer customization support for OEM, ODM, and OBM, allowing our customers to tailor the product to their specific needs and preference, including choosing from a variety of sheath materials such as SS304,SS310, SS316 and Inconel 600.
  • Variety Construction: The product features a 99.6% high - purity MgO insulator and a thick, durable sheath made from high-quality materials, ensuring a long lifelong and reliable performance.
  • Variety of Size: Our product is available in a range of sizes, from 0.5mm to 12.7mm, catering to diverse customers needs and applications.
  • 1-Year Warranty: We provide a 1-year warranty for our product, offering customers peace of mind and protection against defects or malfunctions.
  • Thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit
  • Thermocouples are a widely used type of temperature measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.

Where” Applications or “When” to Use!

  • Solid waste incinerators
  • Sintering powdered metals
  • Firing ceramic materials
  • Gas or oil fired furnaces
  • Fuel fired heat exchangers
  • Box furnaces
  • Nuclear or hydrocarbon based energy plants
  • And many more...





Product Pictures

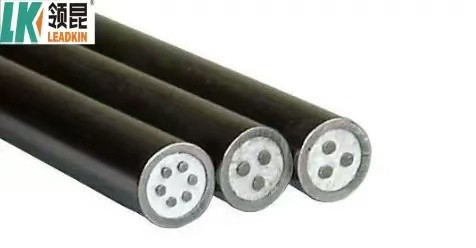

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 0

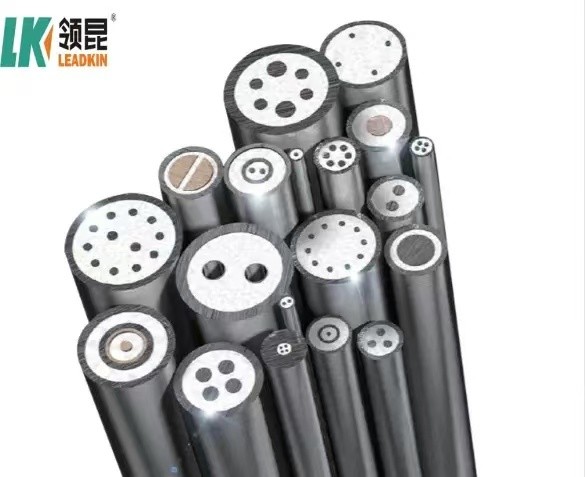

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 1





Company Information:

A. Main Products

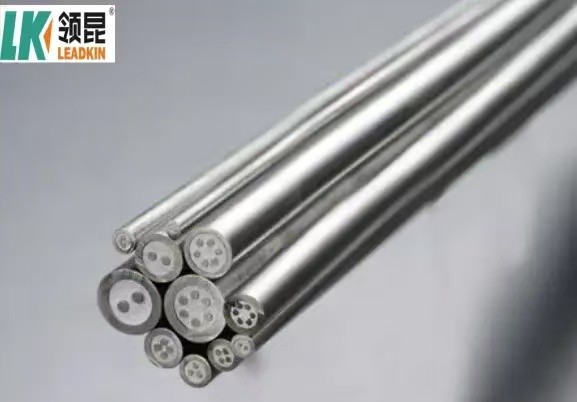

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 2

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 3Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 4Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 5





B. Package



We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.



C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.



1.Assembly

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 6

2.Drawing

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 7

3.Annealing

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 8

4. Polishing



5.Test

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 9



6. Mi cable in stock

Mineral Insulated Stainless Steel Sheath Material Thermocouple Sheath MI Cable 10



Order Notice:

1. Accurate quotation.

2. Confirm the price, trade term, lead time, payment term etc.

3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos.

7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

8. The order is finished perfectly when you receive the goods and get satisfied with them .

9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
