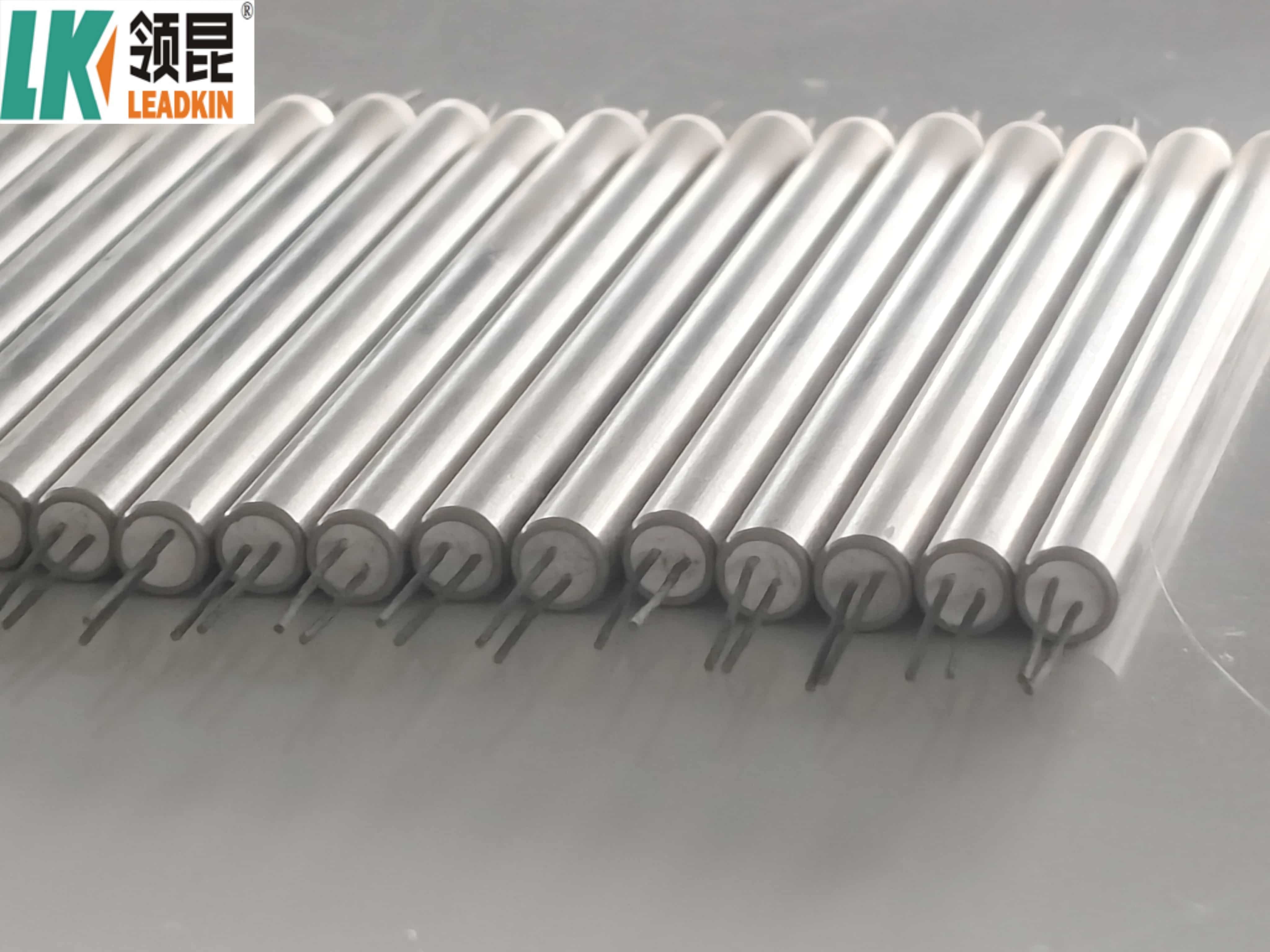

Mineral Insulated Heating Cable------MI Cable

Quick Details:

 Type: K/N/E/J/T/S

Core number: 2, 4 or 6 cores

Dia(mm): 0.5mm to 12.7mm

Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Sheath material: Inconel600, Nicrobell, SS321(SS304), SS316, SS310,

Place of Origin: Zhejiang, China (Mainland)

Application: connecting with thermocouple and instrument machine

Name:SS316 ,SUS304,inconle Shielded K Type Thermocouple Cable MgO 99.6,0.5mm -12.7

Type for Sheath Wire Type K

Accuracy for Sheath Wire Type K

About this product:

• High-Temperature Resistance:Our MI sheathed high-temperature heating cables are designed to withstand extreme temperature, making them suitable use in various industrial applications, including those in areas with high-temperature fluctuations.
• Customization Option: We offer customization support for OEM, ODM, and OBM, allowing our customers to tailor the product to their specific needs and preference, including choosing from a variety of sheath materials such as SS304,SS310, SS316 and Inconel 600.
• Variety Construction: The product features a 99.6% high - purity MgO insulator and a thick, durable sheath made from high-quality materials, ensuring a long lifelong and reliable performance.
• Variety of Size: Our product is available in a range of sizes, from 0.5mm to 12.7mm, catering to diverse customers needs and applications.
• 1-Year Warranty: We provide a 1-year warranty for our product, offering customers peace of mind and protection against defects or malfunctions.

• Thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit
• Thermocouples are a widely used type of temperature measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.

Where” Applications or “When” to Use!

• Solid waste incinerators
• Sintering powdered metals
• Firing ceramic materials
• Gas or oil fired furnaces
• Fuel fired heat exchangers
• Box furnaces
• Nuclear or hydrocarbon based energy plants
• And many more...

Product Pictures

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

1.Assembly

2.Drawing

3.Annealing

4. Polishing

5.Test

6. Mi cable in stock
