Quick Details:
Type: K/N/J/T/E/S
Brand: LEADKIN
Usage: for thermocouple making
Dia(mm): 0.5mm to 12.7mm
Sheath material: SS321(SS304), SS316
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan
Name:SS304 Mi Thermocouple Cable Type K 3.0 mm 6.0 mm
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | |||
| Accuracy | Temp.Range | Accuracy | Temp.Range | ||
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | ||
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | ||
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | ||
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | ||
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ | |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | ||
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ | |
1. Application
Thermocouple mineral insulated cable is widely applied in industry, are used for power and control circuits of critical equipment, such as Temperature measurement devices; a proven choice for high temperature probe fabrication.

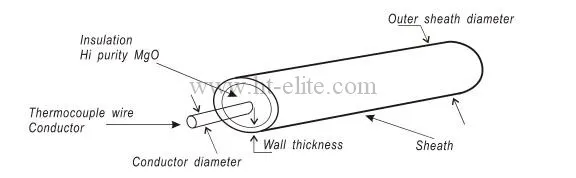

2. Contruction
Itis made by placing one or more wire conductors inside a circular copper tube and filling the intervening spaces with dry magnesium oxide powder.
The overall assembly is then pressed between rollers to reduce its diameter (and increase its length).
3. Outlook
Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Exihibition
Product Advantage:
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement.
2:High temperature resistant Extension wire.
3:Probe length can be customized, probe can be bent.
4:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring.
5:High Precision Temperature control probe .
6:Quick response.
