Quick Details:
Type: type K J E T N thermocouple wire
Brand: LEADKIN
Usage: for thermocouple making
Dia(mm): 0.5mm to 12.7mm
Sheath material: SS321(SS304), SS316
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan
Name:Nicr-Nisi Conductor Material SS304 321 316 310 Inconel 600 Sheath K N E J T Mi Thermocouple Cable
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | |||
| Accuracy | Temp.Range | Accuracy | Temp.Range | ||
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | ||
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | ||
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | ||
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | ||
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ | |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | ||
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ | |
Positive leg(KP leg) is universally known as Ni90Cr10 or Chromel.
Negative leg( KN leg) is universally known as Alumel or NiAlCo/ NiSi3
Thermocouple wire Type K is supplied in the form of bare wire with dimension from 0.1mm to 8.0mm
For oxidised wires the available dimensions are 1.2 to 8mm.
Thermocouple wire can also be supplied in the form of stranded wire.
Thermocouple Wire
Type K Thermocouple (Nickel-Chromium / Nickel-Alumel): The type K is the most common type of thermocouple. It's inexpensive, accurate, reliable, and has a wide temperature range. The type K is commonly found in nuclear applications because of its relative radiation hardness. Maximum continuous temperature is around 1,100C.

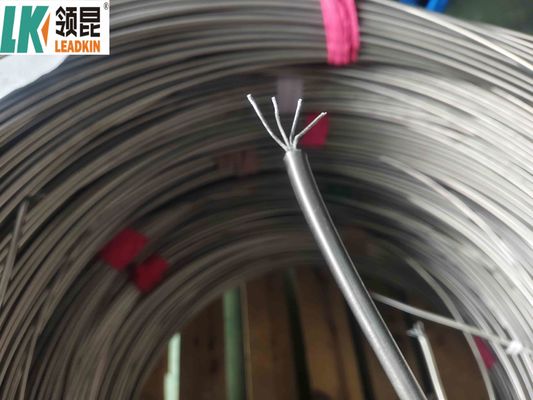

Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Exihibition
Product Advantage:
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement.
2:High temperature resistant Extension wire.
3:Probe length can be customized, probe can be bent.
4:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring.
5:High Precision Temperature control probe .
6:Quick response.
