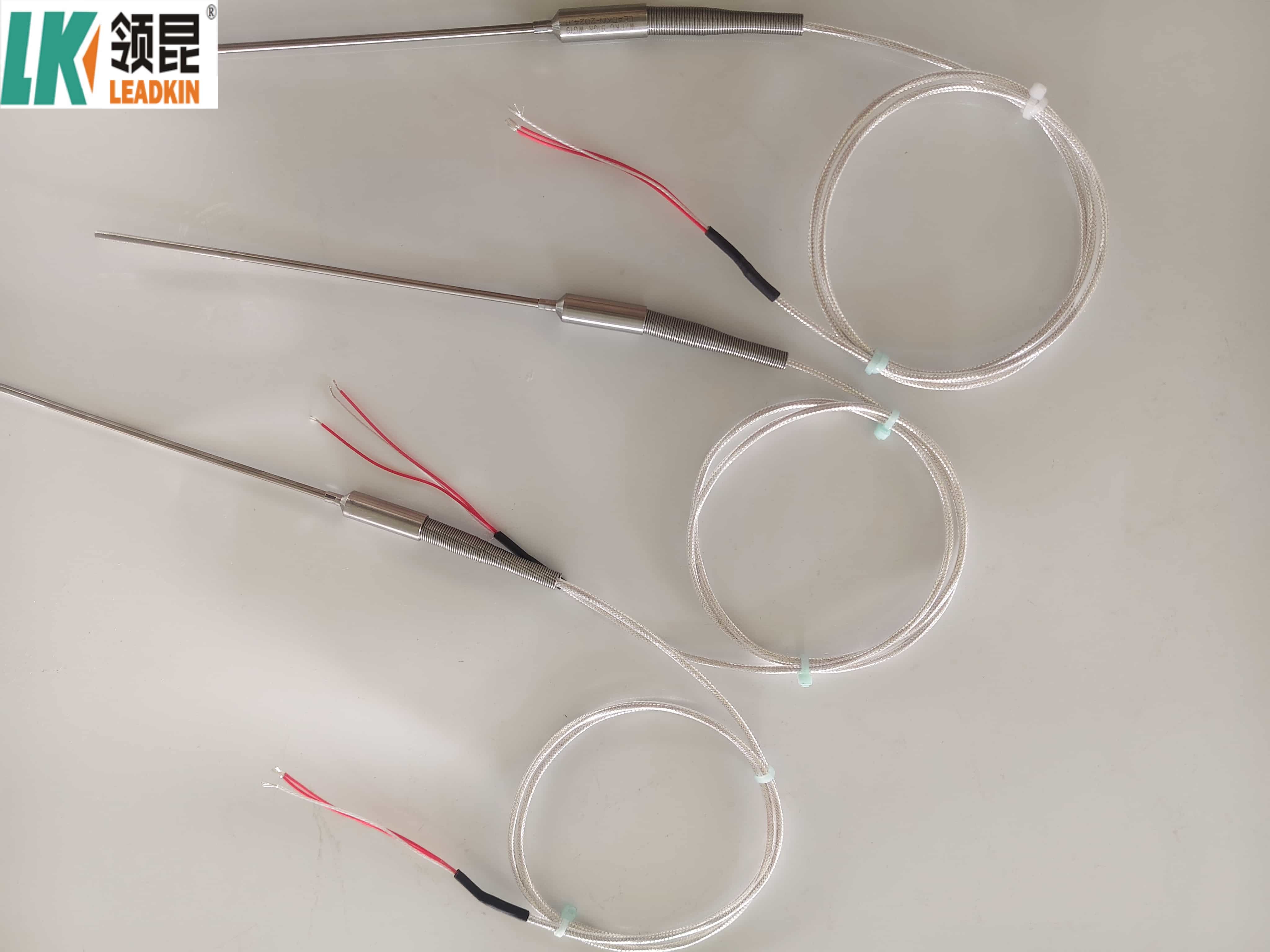

Durable Mineral Insulated RTD Sensor Cable 50M
| Jacket Material: | SS304,SS321,SS316 | Name: | Mineral Insulated RTD Cable |
| Purity of MgO: | ≥99.6% | Sample: | Free |
| MOQ: | 50M | Accuracy: | Din Class A Or B |
| High Light: | Mineral Insulated RTD Sensor Cable,Durable RTD Sensor Cable,50M RTD Sensor Cable |
||
RTD stands for Resistance Temperature Detector. RTD sensor is basically a temperature sensing device in which change in resistance of the detector element is calibrated with temperature. Thus, a change in resistance directly gives the value of temperature of the system. It is used to measure the temperature of a system and also known as Resistance Thermometer.
Quick detail:
Name:Mineral Insulated RTD Cable
Type: Pt100
Conductor material: Ni
Insulator: 99.6% high purity MgO
Core number: 3, 4, 6,8
Sheath material: SS321(SS304), SS316
Dia(mm): 3.0mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Zhejiang, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Nominal Dimension of Thermocouple and RTD Cable:
| Dia | Wall thickness | Conductor Dia | Purity of MgO | Insulated Resistance |
| 0.5±0.025 | ≥10%D | ≥15%D | ≥99.4% | Room temp. ＞100MΩ/75V |
| 1.0±0.025 | ||||
| 1.5±0.025 | ||||
| 1.6±0.025 | ||||
| 2.0±0.025 | ||||
| 3.0±0.030 | Room temp. ＞100MΩ/500V 500℃ ＞5MΩ/500V | |||
| 4.0±0.045 | ||||
| 4.8±0.045 | ||||
| 5.0±0.045 | ||||
| 6.0±0.060 | ||||
| 6.4±0.060 | ||||
| 8.0±0.080 |
Weight Table:
| Type | Dia. | SS304 SS316 | ||
| 3 core | 4 core | 6 core | ||
| Ni | 3.0 | 0.045 | 0.039 | 0.040 |
| 3.2 | 0.051 | 0.046 | 0.046 | |
| 4.0 | 0.075 | 0.074 | 0.074 | |
| 4.8 | 0.108 | 0.105 | 0.107 | |
| 5.0 | 0.116 | 0.113 | 0.115 | |
| 6.0 | 0.180 | 0.164 | 0.163 | |
| 6.4 | 0.203 | 0.204 | 0.191 | |
| 8.0 | 0.297 | 0.363 | 0.301 | |
What is an RTD Sensor?
The term RTD stands for Resistance Temperature Detector. This sensor is also known as Resistance thermometer. This sensor is used to measure the temperature.
Usually, they are available as a length of fine wire made of platinum nickel or copper, wrapped around a ceramic or glass core. This sensor makes use of the temperature/resistance relationship of the wire to measure the temperature.
Applications of RTD:
RTD sensor is used in automotive to measure the engine temperature, an oil level sensor, intake air temperature sensors. In communication and instrumentation for sensing the over the temperature of amplifiers, transistor gain stabilizers, etc…
RTD is used in power electronics, computer, consumer electronics, food handling and processing, industrial electronics, medical electronics, and aerospace.

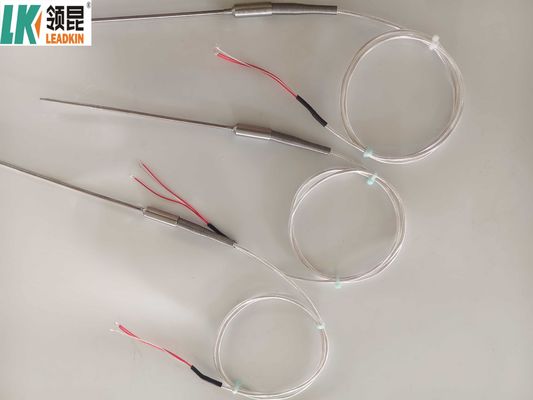

Product Pictures:
Company Details:
A. Inspection Workship
100% test for every coil cable, make sure good quality products to customer.
B. Exhibition
C.Packaging
Order Notice:
| 1. Accurate quotation. |
| 2. Confirm the price, trade term, lead time, payment term etc. |
| 3. LEADKIN sales send the Proforma Invoice with LEADKIN seal. |
| 4. Customer arranges the payment for deposit and sends us bank slip. |
| 5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
| 6. End Production-Mass production products photos. |
| 7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients. |
| 8. The order is finished perfectly when you receive the goods and get satisfied with them . |
| 9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better . |
