Customizable Thermocouple Temperature Probe For Industrial Temperature Monitoring Sensing And Control
| Sheath Material: | SS316, 310S,Inconel600 | Calibration: | K,N,E,J,T,R,B,S,Pt100 |
| Dia: | 0.5mm-12.7mm | Purity of MgO: | ≥99.6% |
| Sample: | Free | Package: | Carton |
| Type: | Single Double | Customization: | Yes |
| High Light: | Customizable Thermocouple Temperature Probe,Industrial Temperature Monitoring Sensing Probe,Industrial Temperature Monitoring Control Probe |
||
Customizable Thermocouple Temperature Probe for Different Industrial Temperature Needs:
- A thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. A thermocouple is a simple, robust and cost-effective temperature sensor used in a wide range of temperature measurement processes.
- Thermocouples are manufactured in a variety of styles, such as thermocouple probes, thermocouple probes with connectors, transition joint thermocouple probes, infrared thermocouples, bare wire thermocouple or even just thermocouple wire.
- Thermocouples are commonly used in a wide range of applications. Due to their wide range of models and technical specifications, but it is extremely important to understand its basic structure, functionality, ranges as to better determine the right thermocouple type and material of thermocouple for an application.
Quick Details:
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell
Dia(mm): 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Zhejiang, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | ||
| Accuracy | Temp.Range | Accuracy | Temp.Range | |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |

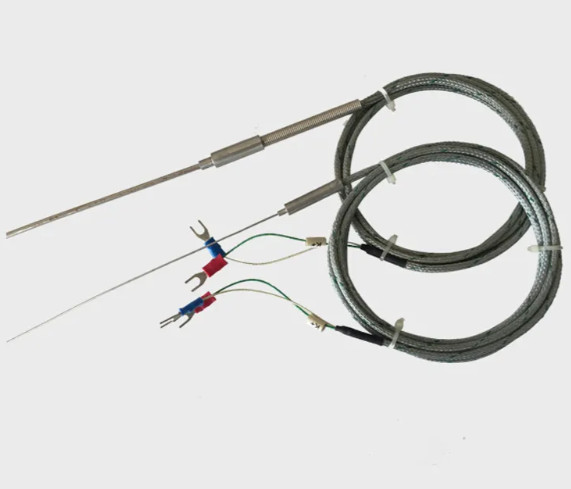

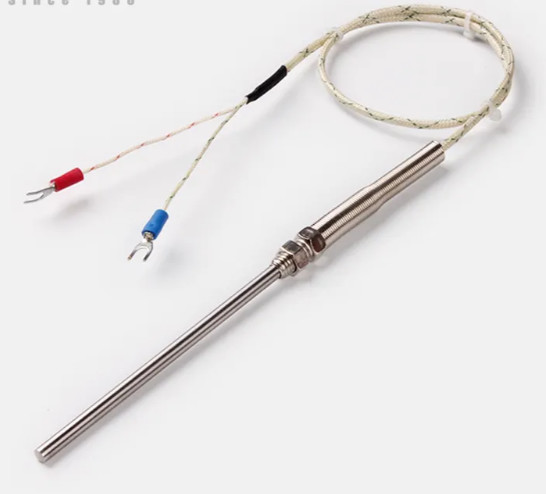

Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Warehouse
We have great amount mi cable in stock, expecting your visiting.
FAQ:
| 1. Accurate quotation. |
| 2. Confirm the price, trade term, lead time, payment term etc. |
| 3. LEADKIN sales send the Proforma Invoice with LEADKIN seal. |
| 4. Customer arranges the payment for deposit and sends us bank slip. |
| 5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
| 6. End Production-Mass production products photos. |
| 7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients. |
| 8. The order is finished perfectly when you receive the goods and get satisfied with them . |
| 9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better . |
