K-Type Thermocouple Temperature Probe With NiCr-NiSi / NiCr-NiAl Conductor Material

Quick Details:

 Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: Single / Double

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Sheath material: Inconel600, 0Cr18Ni10Ti, SS304S,SS316L, SS310,SS316,GH3030, GH3039, GH747

Sheath Dia(mm): 0.5mm to 12.7mm :φ0.5,φ1.0, φ1.5(1.6), φ2.0, φ3.0(3.2),φ4.0,φ5.0(4.8),φ6.0(6.4),φ8.0,φ12.7

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

About this product:

• An Exhaust Gas Temperature (EGT) probe is a specialized sensor used to measure the temperature of exhaust gases emitted from engines, particularly in internal combustion engines, gas turbines, and other combustion systems. Monitoring exhaust gas temperature is crucial for performance optimization, emissions control, and equipment protection. Here’s a detailed overview of EGT probes:
• Purpose of EGT Probes
• Performance Monitoring: EGT probes help to evaluate the efficiency of combustion processes. By analyzing the temperature of the exhaust gases, engineers can assess how well the fuel is being burned.
• Engine Protection: Monitoring EGT can prevent overheating, which can cause severe damage to engine components. In performance tuning, excessive EGT can indicate a lean fuel mixture or other issues that could lead to engine failure.
• Emissions Control: EGT is a critical parameter for controlling emissions. By ensuring optimal combustion temperatures, EGT probes help in reducing harmful emissions such as NOx (nitrogen oxides).
• Tuning and Optimization: In motorsports and high-performance applications, monitoring EGT is essential for tuning the engine for optimal performance, fuel efficiency, and safety.

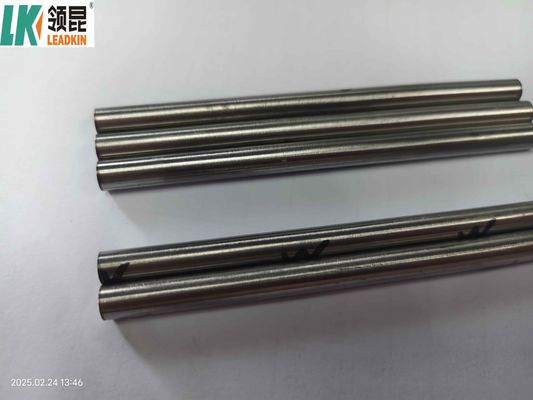

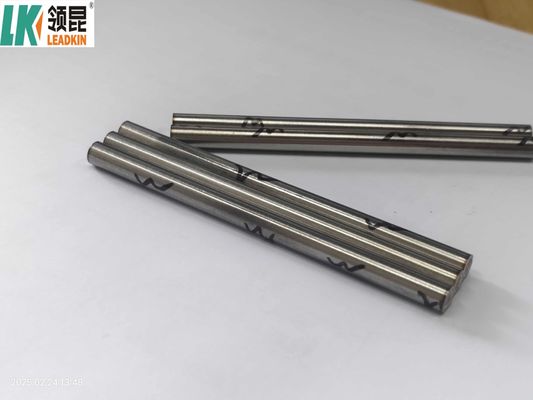

Product Pictures

Company Information:

A. Main Products

products details:

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

Order Notice:

1. Accurate quotation.

2. Confirm the price, trade term, lead time, payment term etc.

3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos.

7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

8. The order is finished perfectly when you receive the goods and get satisfied with them .

9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
