Sheath Material Thermocouple Temperature Probe For High Temperature Applications

Quick Details:

 Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: Single / Double

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Sheath material: Inconel600, 0Cr18Ni10Ti, SS304S,SS316L, SS310,SS316,GH3030, GH3039, GH747

Sheath Dia(mm): 0.5mm to 12.7mm :φ0.5,φ1.0, φ1.5(1.6), φ2.0, φ3.0(3.2),φ4.0,φ5.0(4.8),φ6.0(6.4),φ8.0,φ12.7

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

About this product:

• Types of EGT Probes
• Thermocouple Probes:
• Most commonly used type for EGT measurement.
• Thermocouples, like Type K or Type J, are often employed due to their ability to withstand high temperatures and provide accurate readings.
• RTD (Resistance Temperature Detectors):
• Less common for EGT measurements but can be used in certain applications.
• Provide high accuracy and stability but typically have a lower temperature range compared to thermocouples.
• Infrared Sensors:
• Non-contact temperature measurement devices that can measure the temperature of the exhaust gases without being directly exposed to them.
• Useful in applications where physical probes cannot be installed.
• Construction of EGT Probes
• Sensor Element: Typically made of thermocouple material (e.g., Chromel and Alumel for Type K thermocouples).
• Probe Sheath: Made of durable materials like stainless steel or Inconel, which can withstand high temperatures and corrosive exhaust environments.
• Insulation: Often mineral insulated (MI) cables are used to ensure the probe can endure high temperatures while providing accurate readings.
• Mounting: EGT probes are designed with threaded or flanged fittings to allow for easy installation into exhaust systems.

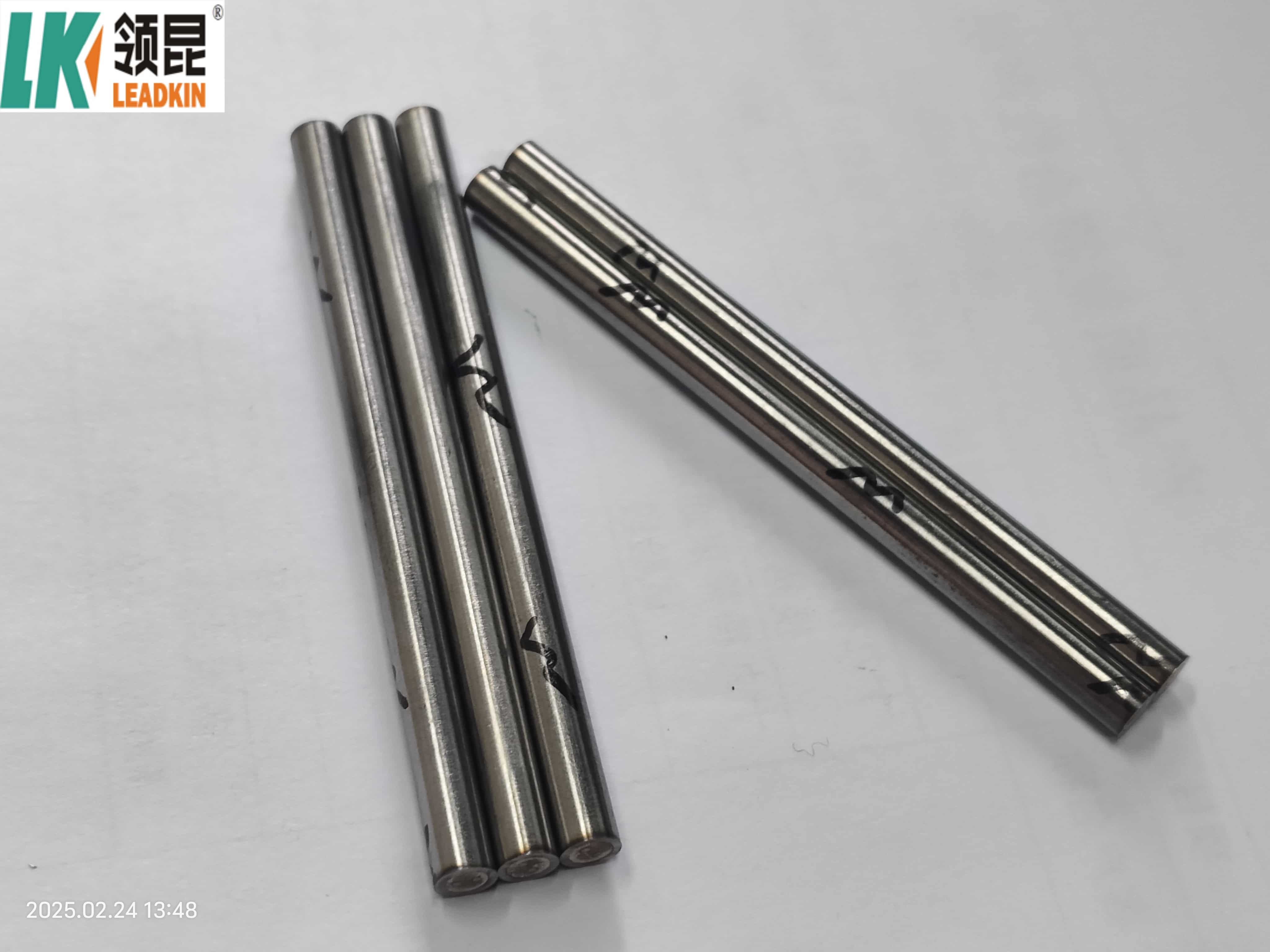

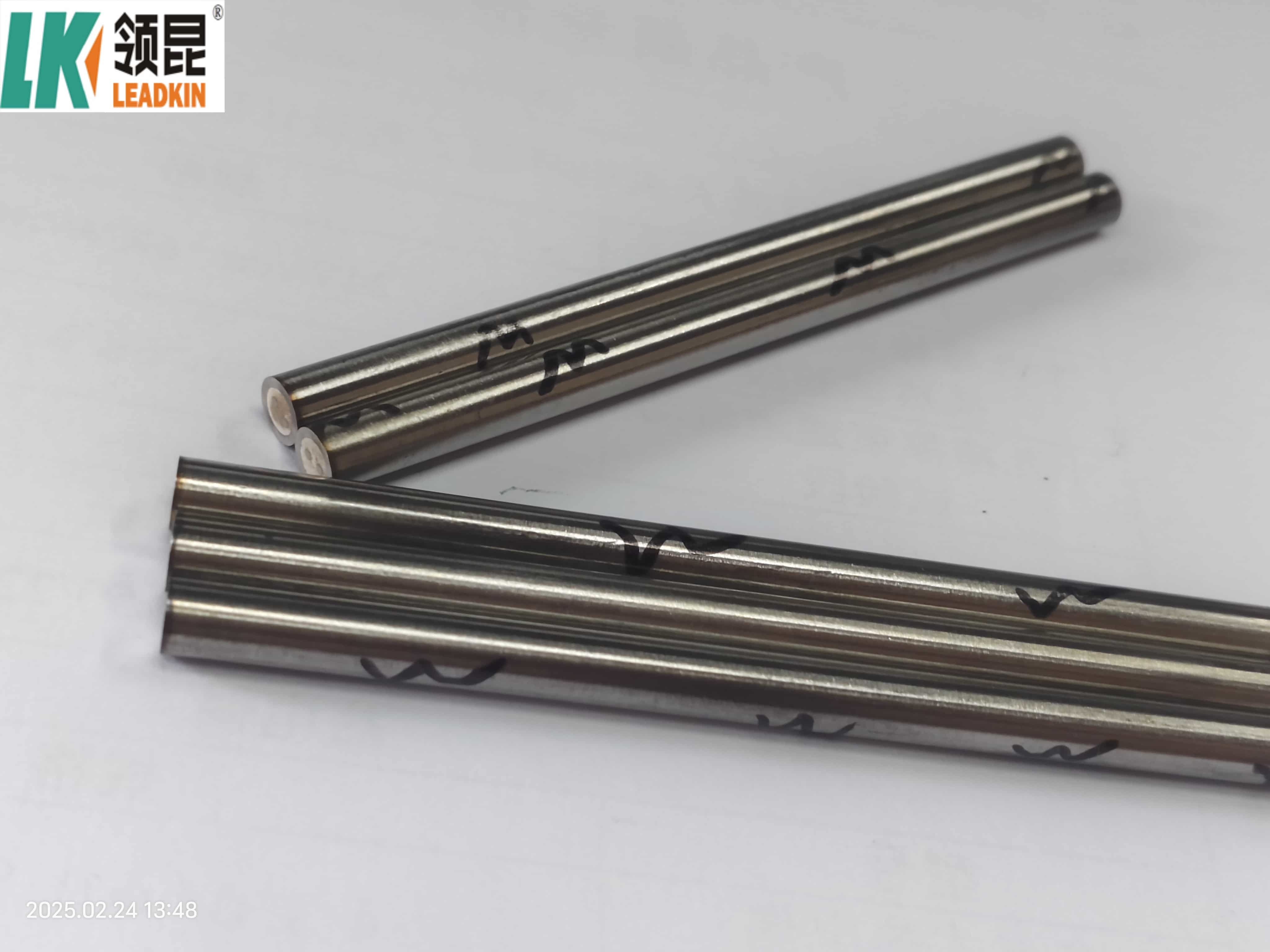

Product Pictures

Company Information:

A. Main Products

products details:

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.
