LEADKIN Mineral Insulated Copper Cable Customizable

Quick Details:

 Name:LEADKIN Copper Sheath Compensation Cable Mi Cable

Type: Cu-CuNi

Conductor material: Cu-CuNi

Insulator: 99.6% high purity MgO

Core number: 2, 4

Sheath material: Copper

Dia(mm):  6.0 mm

Application: compensation cable for R B S type thermocouple

Making sample time: 2 days

Type for Copper Cable

Information for Copper Cable

Mineral Insulated Copper Cable (MICC) is a type of electrical cable widely used in applications where durability, fire resistance, and reliability are critical. Here are some key features and information about MICC:

Key Features

1. Construction:

   • Conductor: Typically made of copper, which is an excellent conductor of electricity.
   • Insulation: The copper conductor is surrounded by a mineral insulation, usually magnesium oxide (MgO), which provides excellent thermal and electrical insulation.
   • Outer Sheath: The cable is often encased in a metal sheath (often copper or stainless steel) that offers mechanical protection and additional fire resistance.

2. Fire Resistance:

   • MICC is highly fire-resistant due to its mineral insulation, which does not burn or emit toxic fumes. This makes it suitable for use in fire-sensitive environments.

3. Durability:

   • The robust design makes MICC resistant to moisture, chemicals, and mechanical damage. It can withstand harsh environmental conditions.

4. Temperature Range:

   • MICC can operate over a wide temperature range, typically from -40°C to +250°C, depending on the specific design and application.

5. Application:

   • Commonly used in areas where fire safety is a concern, such as in high-rise buildings, tunnels, and industrial applications.
   • Suitable for power, lighting, and signal applications.

Advantages

• Safety: High resistance to fire and smoke makes it a safe choice for critical installations.
• Longevity: Durable construction leads to a long service life with minimal maintenance.
• Reliability: The design ensures consistent performance under various environmental conditions.

Disadvantages

• Cost: MICC can be more expensive than conventional cables due to its robust construction and materials.
• Installation: It requires specific techniques for installation and termination, often necessitating skilled labor.

Standards and Regulations

MICC typically complies with various international standards for electrical installations, including:

• BS 6387: Specifies performance requirements for cables under fire conditions.
• IEC 60331: Focuses on the fire-resistance of cable systems.

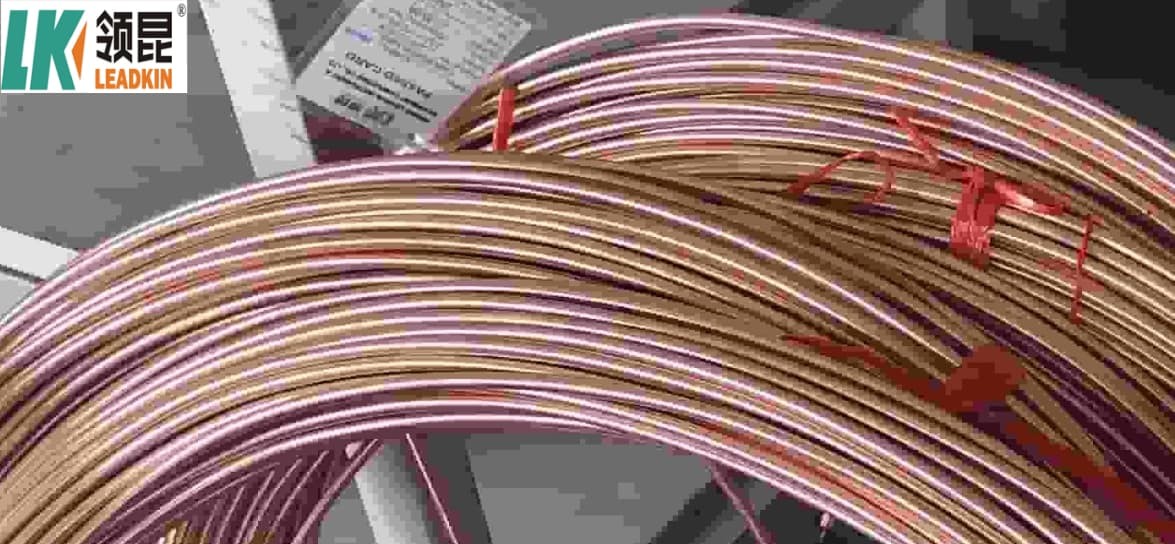

Product Pictures

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Warehouse

We have great amount mi cable in stock. We expecting your visiting.

D. Our Team
