High-Performance Mineral Insulated Metal Sheathed Cable for Industrial Applications
Quick Details
Type: K/N/E/J/T/S/R/B
Place of Origin: Zhejiang, China (Mainland)
Accuracy: I-0.4%t, II-0.75%t, III-1.5%t
Core number: 2,3,4,6
Inorganic mineral insulating lead material: Ni, Cu
Insulator: 99.6% high purity MgO
Type for Sheath Wire Type K
| Product Name |
Code |
Type |
Sheath Material |
Outside Dia. |
Temperature |
| NiCr-NiSi /NiCr-NiAl |
KK |
K |
SS304 SS316 |
0.5-1.0 |
400 |
| 1.5-3.2 |
600 |
| 4.0-8.0 |
800 |
| SS310 Inconel600 |
KK |
K |
SS310 Inconel600 |
0.5-1.0 |
500 |
| 1.5-3.2 |
800 |
| 4.0-6.4 |
900 |
| 8.0-12.7 |
1000 |
Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples. The data in the table is for reference only.
Accuracy for Sheath Wire Type K
| Type |
Class I |
Class II |
| K |
±1.5℃ (-40~375℃) |
±2.5℃ (-40~375℃) |
| ±0.4% (375℃-1000℃) |
±0.75% (375℃-1000℃) |
Key Features and Benefits
High-Temperature Tolerance: Withstands extreme temperatures exceeding 1000°C (1832°F), ideal for harsh industrial environments.
Durability: Stainless steel or alloy sheath provides excellent mechanical protection against abrasion and corrosion.
Compact Design: Small diameter allows for easy installation in tight spaces with better thermal response times.
Low Thermal Mass: Compact construction enables faster response to temperature changes.
Versatility: Suitable for furnaces, kilns, ovens, and various high-temperature processes.
Construction Overview
- Conductor: Copper or aluminum core for efficient electrical current transmission with minimal power loss.
- Insulation: Magnesium oxide (MgO) provides excellent thermal and electrical insulation properties.
- Sheath: Metal outer layer (copper, stainless steel or aluminum) offers mechanical protection against physical damage and moisture.

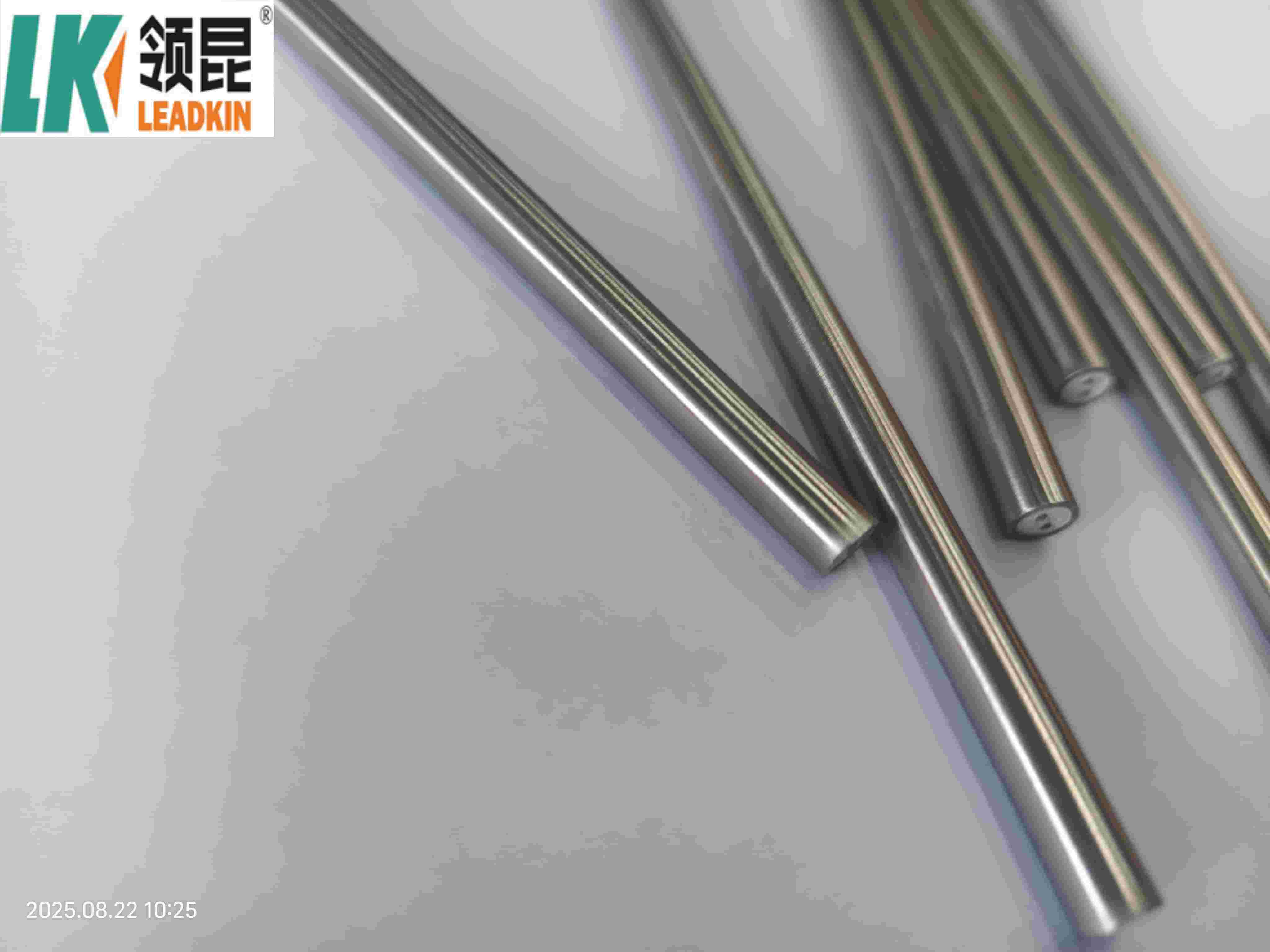

Product Pictures
Company Information
Main Products
Packaging
We use heat shrink tubing and plastic film to ensure high insulated resistance. Each coil cable includes marking notes, pass card, and test report.
MI Cable Production Line
We maintain high-quality professional products with advanced production lines and equipment. All products comply with international quality standards and are appreciated in global markets. We continuously improve our production systems and product quality to meet increasing market demands.
Support and Services
Our Mineral Insulated Thermocouple Cables provide accurate temperature measurements in high-temperature environments. We offer custom solutions with various thermocouple types, sheath materials, and insulation materials to meet specific needs.
- Selection guidance for thermocouple type, sheath material, and insulation material
- Assistance with cable installation and maintenance
- Troubleshooting and problem-solving
- Repair and warranty services
Our expert team ensures the highest level of customer satisfaction and provides reliable solutions for temperature measurement needs.
Order Notice
- Accurate quotation
- Confirm price, trade terms, lead time, payment terms
- Receive Proforma Invoice with LEADKIN seal
- Arrange payment for deposit and send bank slip
- Production updates with photos showing your products in production line
- Final production photos before shipping
- Make balance payment and receive tracking information
- Complete order when satisfied with received goods
- Provide feedback about quality, service, and suggestions for improvement
