Name: Customizable Length (1-5m) Mineral Insulated Thermocouple Cable with Versatile Industrial Applications and Multiple Core Types (Single/Double)
Brand: Ningbo Leadkin Instrument Complete Sets of Equipment Co., Ltd.
SKU: LK-KK
Price: 2.50 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Brand Name: LEADKIN

Purity Of MgO: ≥99.6%

Warranty: 1 Year

MOQ: 100M

Accuracy: Class I/II

Customized: Yes

Sheath Material: SS316

Core Type: Single / Double

Dia: 0.5mm-12.7mm

Place Of Origin: Ningbo, China

Theory: Temperature Sensor

Cable Length: 1-5m Or Customized

Usage: Industrial Temperature Test

Name: Factory Direct Types 2/4/6/8 Cores Mineral Insulated Cable K/N/E/J/T Mi Cable For Thermocouple

Highlight:

Customizable Length MI Thermocouple Cable

Versatile Industrial Applications Thermocouple MI Cable

Multiple Core Types Mineral Insulated Thermocouple Cable

Basic Infomation

Place of Origin: NINGBO CHINA

Brand Name: LEADKIN

Certification: ISO9001, IATF16949, CE

Model Number: LK-KK

Payment & Shipping Terms

Packaging Details: 70*70*8cm Carton

Delivery Time: 2-7 working days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,D/A

Supply Ability: 1,000,000M/year

Gallery

Customizable Length (1-5m) Mineral Insulated Thermocouple Cable with Versatile Industrial Applications and Multiple Core Types (Single/Double)

Product Description

Versatile Mineral Insulated Thermocouple Cable

High-performance thermocouple cable designed for various industrial applications and demanding environments.

Quick Details

Core number: 2, 4, 6
Diameter: 0.5mm to 12.7mm
Usage: For thermocouple making
Insulator: 99.6% high purity MgO
Availability: All types in stock
Trade terms: FOB, EXW, CIF, CFR
Payment terms: T/T, Western Union, L/C
Sheath material: SS321(SS304), SS316
Application: Connecting with thermocouple and instrument machine
Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Type for Sheath Wire Type K

Product Name	Code	Type	Sheath Material	Outside Dia.	Temperature
NiCr-NiSi /NiCr-NiAl	KK	K	SS304 SS316	0.5-1.0	400
				1.5-3.2	600
				4.0-8.0	800
NiCr-NiSi /NiCr-NiAl	KK	K	SS310 Inconel600	0.5-1.0	500
				1.5-3.2	800
				4.0-6.4	900
				8.0-12.7	1000

Accuracy for Sheath Wire Type K

Type	Class I Accuracy	Class I Temp.Range	Class II Accuracy	Class II Temp.Range
K	±1.5℃	-40~375℃	±2.5℃	-40~375℃
	±0.4%	375℃-1000℃	±0.75%	375℃-1000℃

Applications

Thermocouple mineral insulated cable is widely applied in industry, used for power and control circuits of critical equipment such as temperature measurement devices. It's a proven choice for high temperature probe fabrication.

Construction

Made by placing one or more wire conductors inside a circular copper tube and filling the intervening spaces with dry magnesium oxide powder. The overall assembly is then pressed between rollers to reduce its diameter (and increase its length).

A mineral-insulated (MI) thermocouple cable consists of two dissimilar metal wires joined together at one end to form a thermocouple junction, enclosed within mineral insulation material (typically magnesium oxide) which provides electrical insulation and mechanical protection.

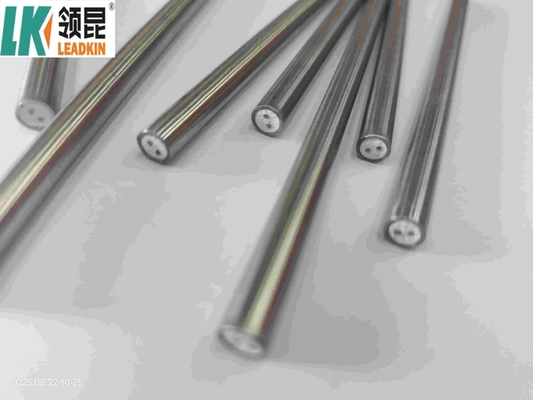

Product Pictures

Company Information

Main Products:

Package:

We add heat shrink tubing and plastic film to ensure high insulated resistance. Except marking notes, we also provide pass card and test report for every coil cable.

Exhibition:

Support and Services

Our Mineral Insulated Thermocouple Cables are designed to provide accurate temperature measurements even in high-temperature environments. With various options for thermocouple types, sheath materials, and insulation materials, we offer custom solutions to fit specific needs.

We provide:

Selection guidance for thermocouple type, sheath material, and insulation material
Assistance with cable installation and maintenance
Troubleshooting and problem-solving
Repair and warranty services

FAQ

Accurate quotation
Confirm the price, trade term, lead time, payment term etc.
LEADKIN sales send the Proforma Invoice with LEADKIN seal
Customer arranges the payment for deposit and sends us bank slip
Middle Production - send photos to show the production line
End Production - Mass production products photos
Clients make payment for balance and LEADKIN ships the goods
The order is completed when you receive the goods and are satisfied
Feedback to LEADKIN about quality, service, market feedback & suggestion
