High Accuracy Mineral Insulated Metal Sheathed Cable with Customizable Length and ISO9001 Certification

50M
MOQ
negotiation
Price
High Accuracy Mineral Insulated Metal Sheathed Cable with Customizable Length and ISO9001 Certification
Features Gallery Product Description Request A Quote
Features
Specifications
Core: 2,3,4,6
Insulation: MgO
Warranty: 1 Year
Temperature Range: 200℃-1000℃
Accuracy: Class I、II、III
Outside Dia: 0.5-12.7mm
Package: Carton. Pallet
Function: Temperature Test
Cable Length: 1-5m Or Customized
Thermocouple Type: K/N/E/J/T/S/R/B
Highlight:

2-6 Core Mineral Insulated Metal Sheathed Cable

,

200℃-1000℃ MIMS Cable

,

Class I/II/III Accuracy Thermocouple Mineral Insulated Cable
Basic Infomation
Place of Origin: NINGBO CHINA
Brand Name: LEADKIN
Certification: ISO9001, IATF16949, CE
Model Number: LK-K
Payment & Shipping Terms
Packaging Details: 70*70*8cm Carton
Delivery Time: 2-7 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1,000,000M/year
Product Description
Mineral Insulated Metal Sheathed Cable for High Temperature Environments
Quick Details
  • Type: K/N/E/J/T/S/R/B
  • Place of Origin: Zhejiang, China
  • Accuracy: I-0.4%t, II-0.75%t, III-1.5%t
  • Core number: 2,3,4,6
  • Inorganic mineral insulating lead material: Ni, Cu
  • Insulator: 99.6% high purity MgO
  • Certificate: ISO9001, IATF16949, CE
  • Application: Connecting with thermocouple and instrument machine
  • Sheath material: 0Cr18Ni10Ti, SS304S, SS316L, SS316, Cu
  • Sheath Dia(mm): φ3.0, φ4.0, φ6.0, φ8.0
Sheath Wire Type Specifications
Product Name Code Type Sheath Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100
Note: Different temperature measuring media and service conditions may impact the service life and temperature range of armored thermocouples. The data in the table is for reference only.
Accuracy Specifications
Type Class I Class II
K ±1.5℃ (-40~375℃)
±0.4% (375℃-1000℃)		 ±2.5℃ (-40~375℃)
±0.75% (375℃-1000℃)
N ±1.5℃ (-40~375℃)
±0.4% (375℃-1000℃)		 ±2.5℃ (-40~375℃)
±0.75% (375℃-1000℃)
E ±1.5℃ (-40~375℃)
±0.4% (375℃-800℃)		 ±2.5℃ (-40~375℃)
±0.75% (375℃-800℃)
J ±1.5℃ (-40~375℃)
±0.4% (375℃-800℃)		 ±2.5℃ (-40~375℃)
±0.75% (375℃-800℃)
T ±0.5℃ (-40~125℃)
±0.4% (125℃-350℃)		 ±1.0℃ (-40~125℃)
±0.75% (125℃-350℃)
S ±1.0℃ (0-1100℃) ±1.5℃ (0-1100℃)
Product Overview
A thermocouple temperature probe uses the thermoelectric effect to measure temperature. It consists of two different metal wires joined at one end, generating a voltage corresponding to temperature differences.
Construction
  • Wires: Made of two different conductive metals (commonly copper, nickel, chromel, alumel)
  • Junction: Measuring junction where wires join, connected to measuring device
  • Insulation: High-temperature resistant materials (ceramic, fiberglass)
  • Sheath: Protective metal or ceramic casing
Working Principle
  • Seebeck Effect: Temperature gradient generates thermoelectric voltage
  • Measurement: Voltage converted to temperature using calibration data
  • Protection: Metal sheath and mineral insulation protect from EMI/RFI and corrosion
Applications
  • Solid waste incinerators
  • Sintering powdered metals
  • Firing ceramic materials
  • Gas or oil fired furnaces
  • Fuel fired heat exchangers
  • Box furnaces
  • Nuclear or hydrocarbon based energy plants

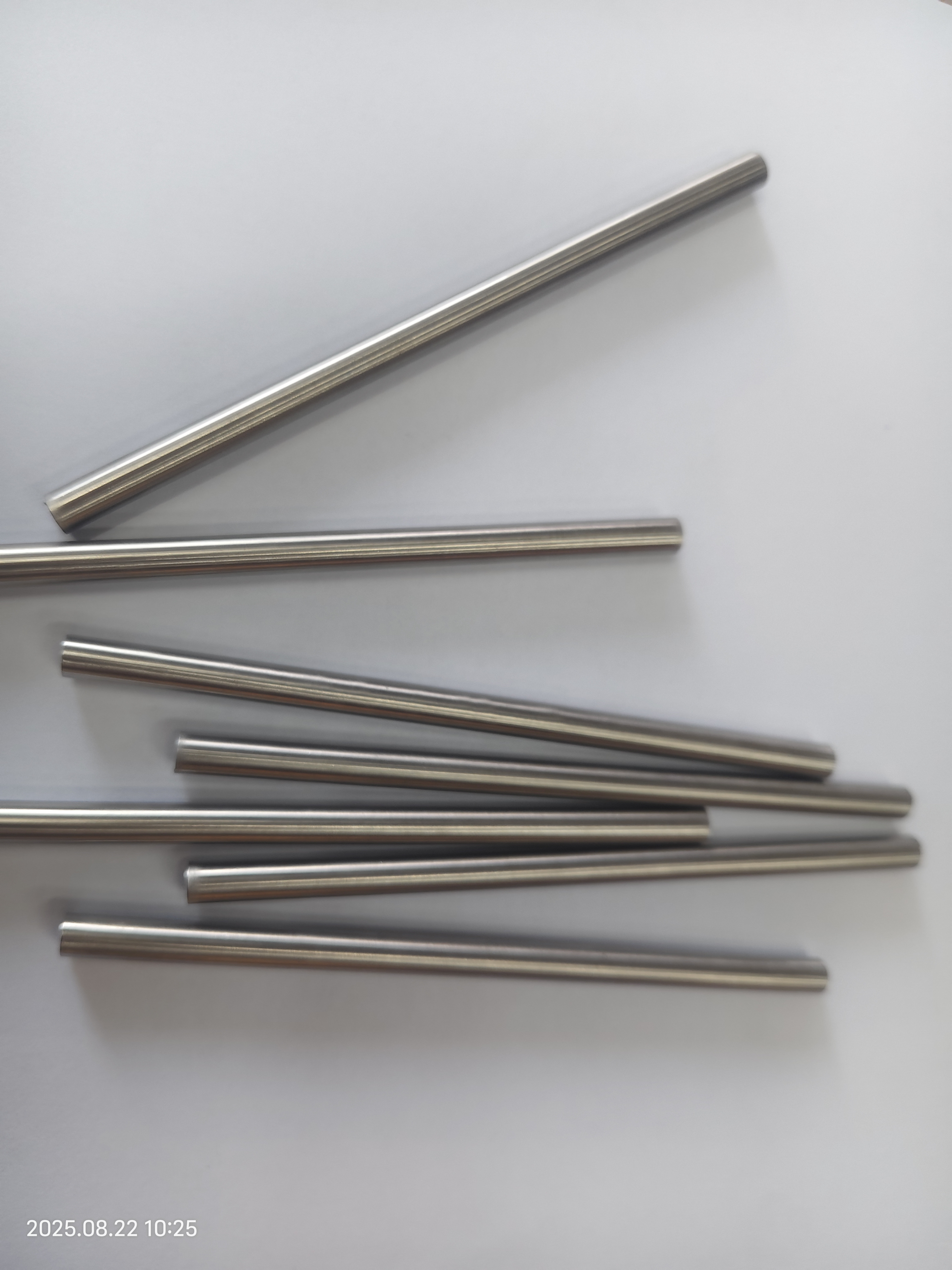

Product Images
High Accuracy Mineral Insulated Metal Sheathed Cable with Customizable Length and ISO9001 Certification 0
Company Information
High Accuracy Mineral Insulated Metal Sheathed Cable with Customizable Length and ISO9001 Certification 1 High Accuracy Mineral Insulated Metal Sheathed Cable with Customizable Length and ISO9001 Certification 2
Packaging
We use heat shrink tubing and plastic film to ensure high insulated resistance. Each coil cable includes marking notes, pass card and test report. High Accuracy Mineral Insulated Metal Sheathed Cable with Customizable Length and ISO9001 Certification 3
Production Line
Our high-quality professional products are manufactured using advanced production lines and equipment, complying with international quality standards.
Order Process
1. Request accurate quotation
2. Confirm price, trade terms, lead time, and payment terms
3. Receive Proforma Invoice with company seal
4. Arrange deposit payment
5. Receive production line photos showing your products
6. Receive mass production photos
7. Make balance payment and receive shipping details
8. Confirm satisfactory receipt of goods
9. Provide feedback on quality and service
Frequently Asked Questions
What are the advantages of using thermocouples?
Wide temperature range, fast response time, simple and rugged design, relatively inexpensive, suitable for extreme conditions.
What are the disadvantages of thermocouples?
Non-linear output requiring calibration, potentially lower accuracy than other sensors, requires reference junction compensation, susceptible to electromagnetic interference.
